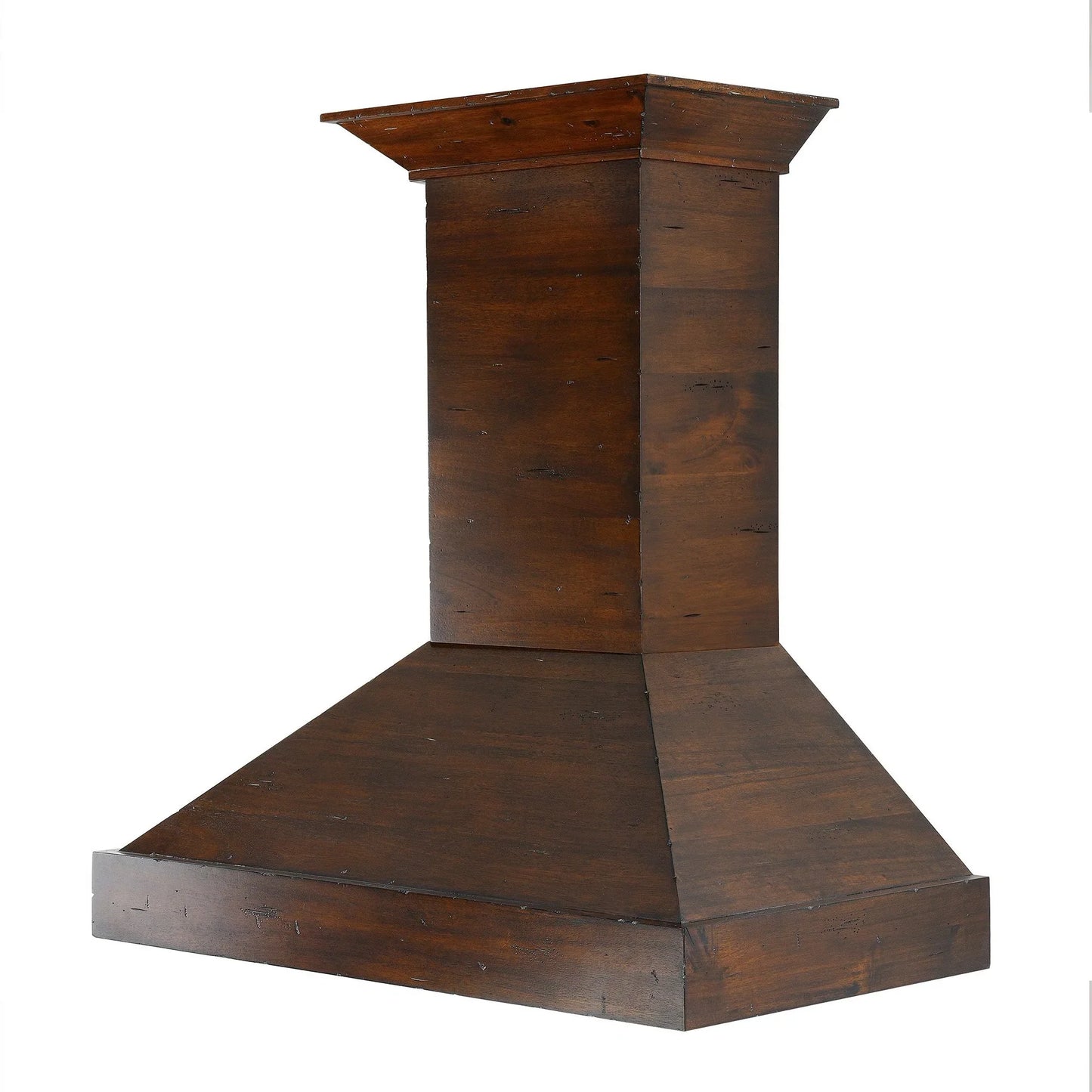

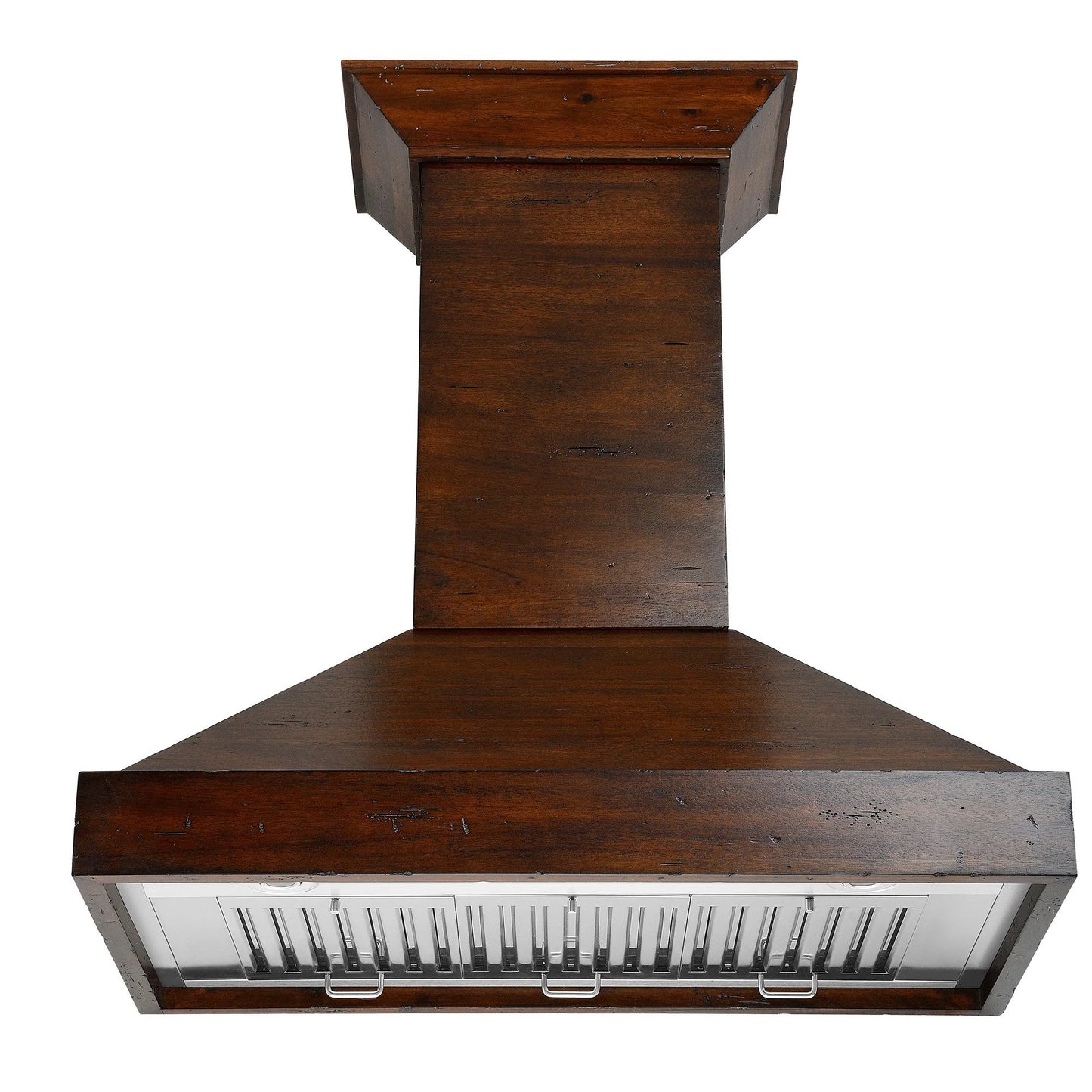

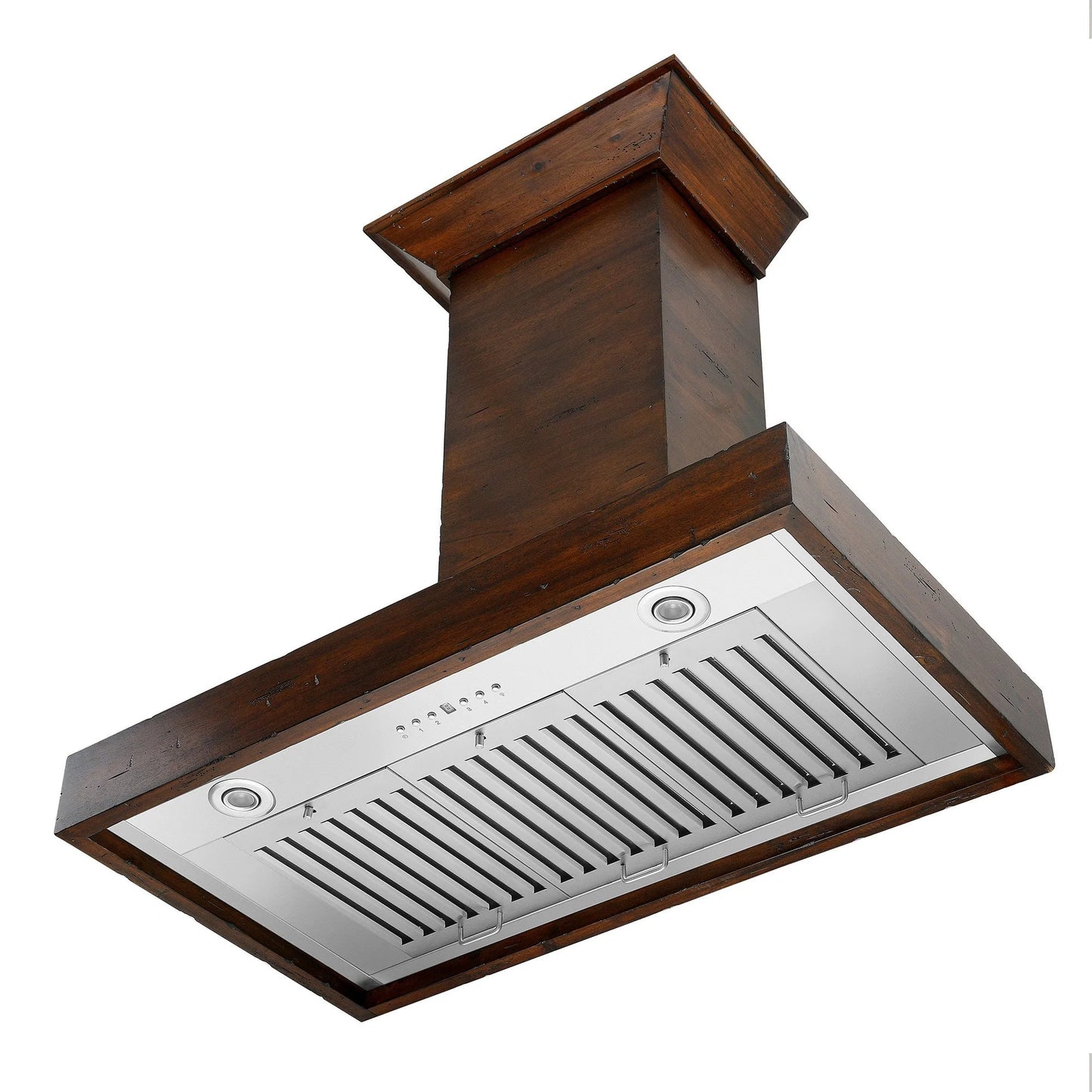

ZLINE KBRR Convertible Vent Wooden Wall Mount Range Hood (KBRR) Description

The ZLINE KBRR is a Designer Series Wooden Wall Mount Range Hood with a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. The walnut hand-finished wood is made from solid pine with a stainless-steel inner frame. This convertible vent range hood comes with a high-performance, 400 CFM, 4-speed motor (120/240/320/400 CFM) that will provide all the power you need to quietly and efficiently ventilate your stove while cooking.

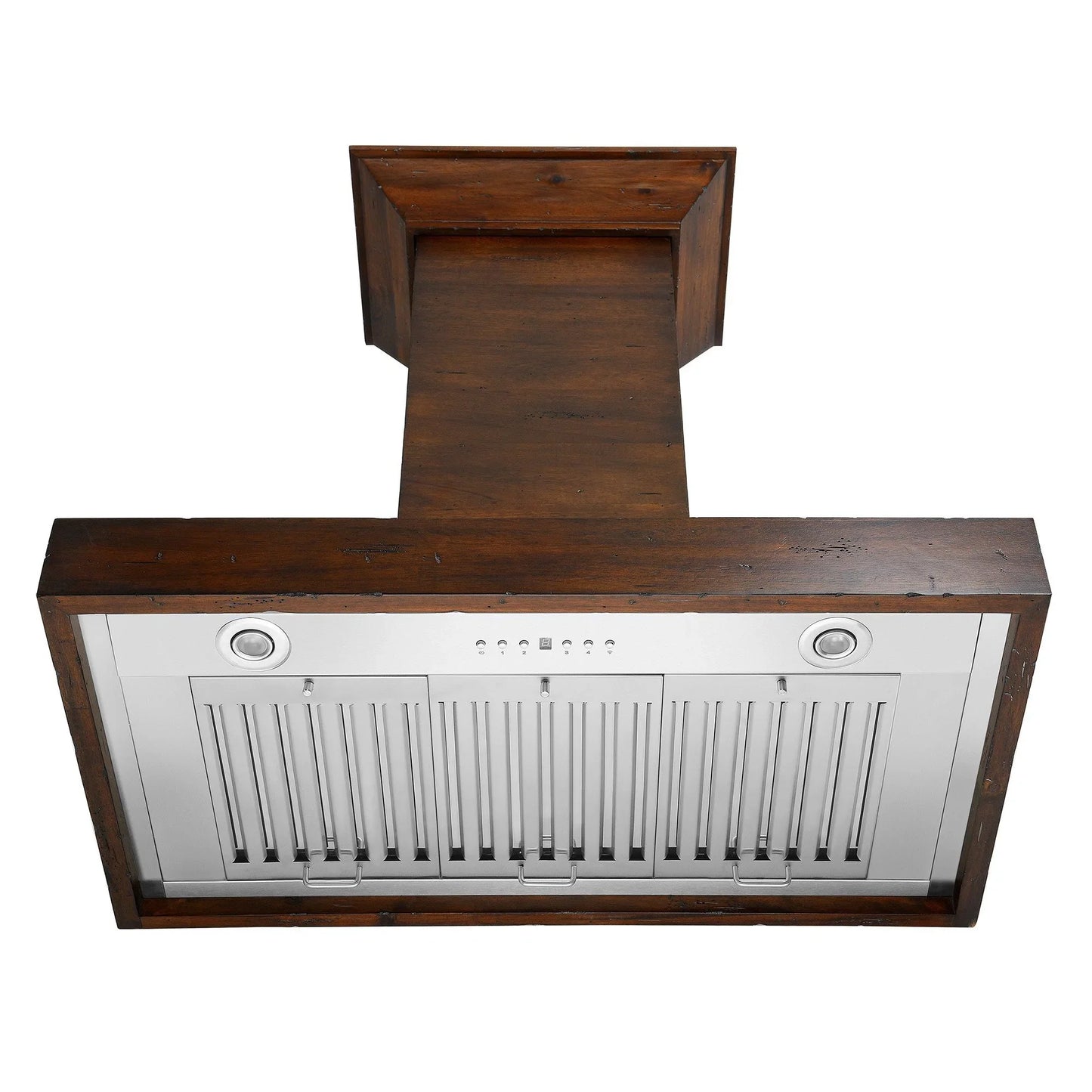

Modern features, including built-in LED lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this vent hood a simple, enjoyable experience for years to come. This wall mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. ZLINE Range Hoods are ETL Listed and have one of the easiest installations in the industry. ZLINE stands by all products with its manufacturer parts warranty.

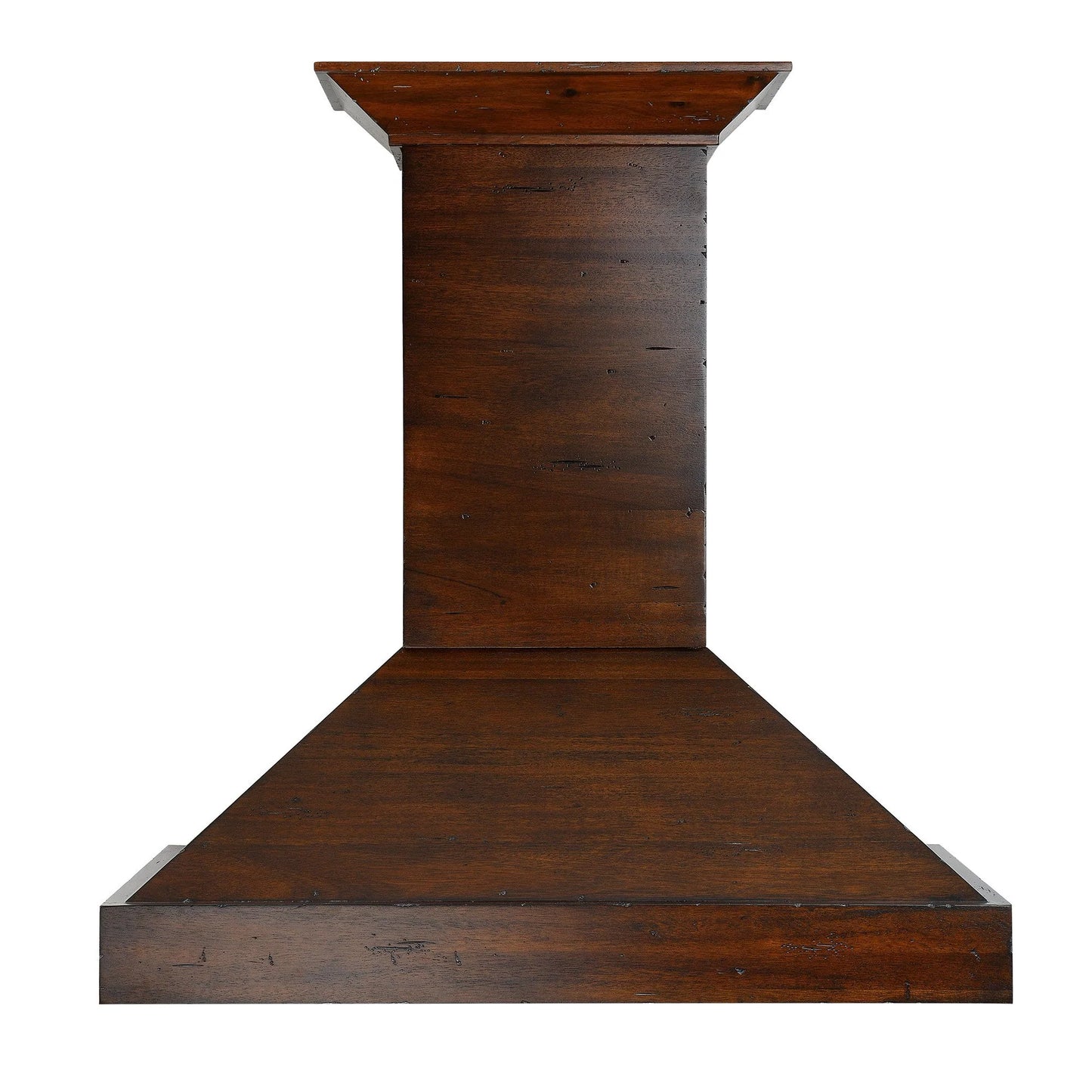

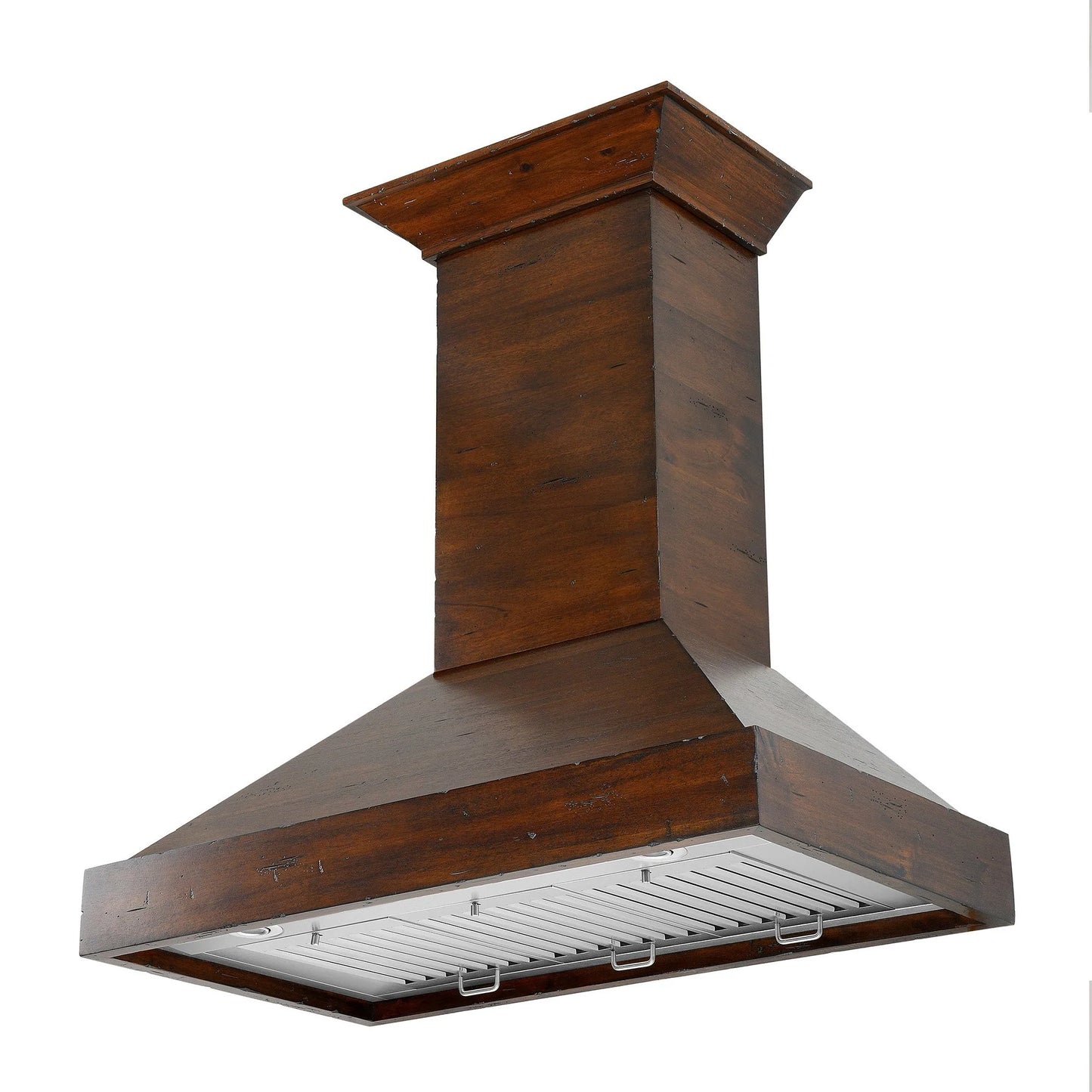

Ducted Wooden Wall Mount Range Hood with Remote Motor (KBRR-RD)

The ZLINE KBRR-RD is a Designer Series Wooden Wall Mount Range Hood with a remote blower has a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. The walnut hand-finished wood is made from solid pine with a stainless-steel inner frame. This hood's high-performance, 700 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking.

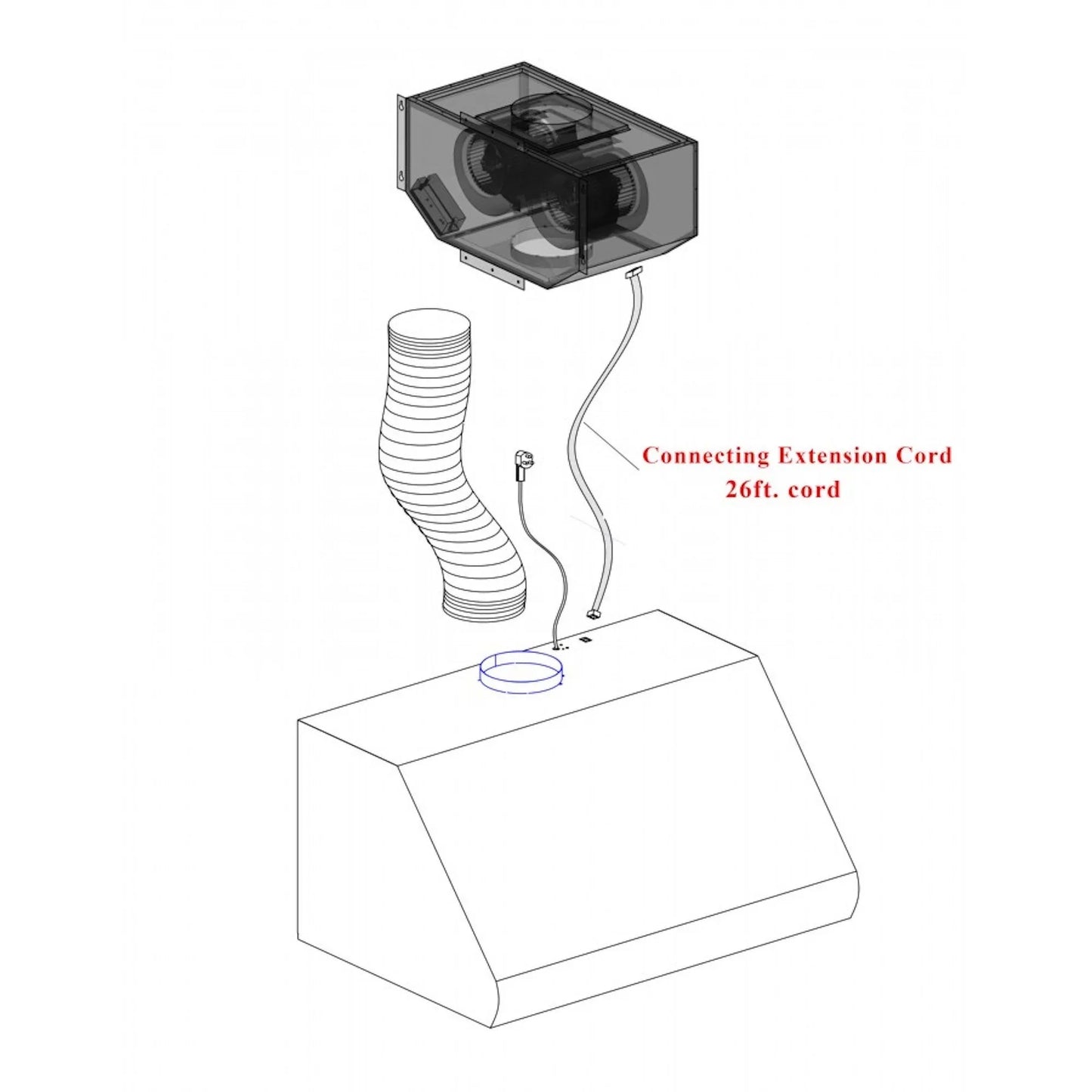

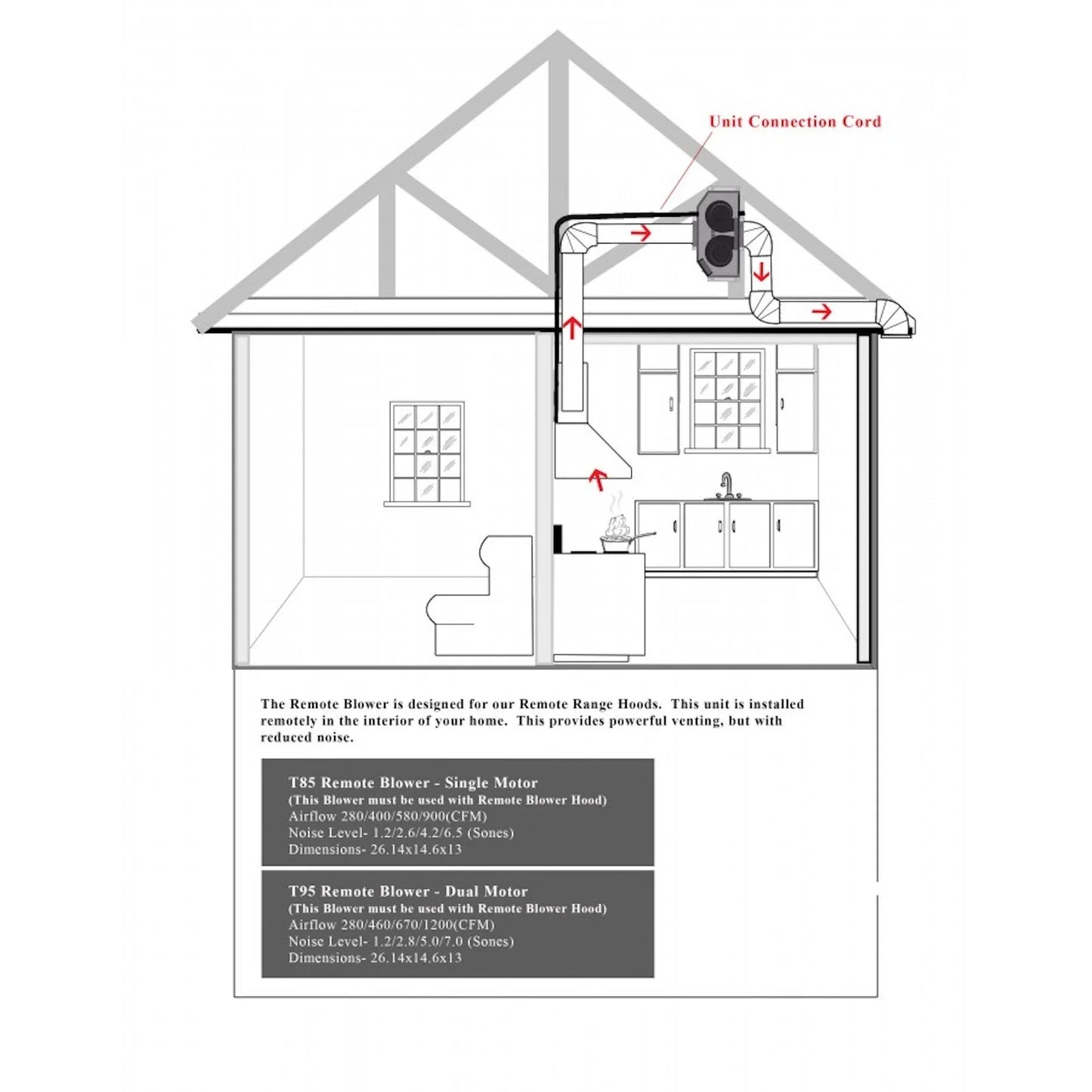

The double motor for this hood is remotely installed in an attic or crawl space to provide powerful venting with significantly reduced noise in your kitchen. Modern features, including built-in LED lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this vent hood a simple, enjoyable experience for years to come. This wall mount range hood insert has a ducted vent with easy, simple installation. ZLINE Range Hoods are ETL Listed and have one of the easiest installations in the industry. ZLINE stands by all products with its manufacturer parts warranty.

Ducted Wooden Wall Mount Range Hood with Remote Motor (KBRR-RS)

The ZLINE KBRR-RS is a Designer Series Wooden Wall Mount Range Hood with a remote blower has a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. The walnut hand-finished wood is made from solid pine with a stainless-steel inner frame. This hood's high-performance, 400 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking.

The single motor for this hood is remotely installed in an attic or crawl space to provide powerful venting with significantly reduced noise in your kitchen. Modern features, including built-in LED lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this vent hood a simple, enjoyable experience for years to come. This wall mount range hood insert has a ducted vent with easy, simple installation. ZLINE Range Hoods are ETL Listed and have one of the easiest installations in the industry. ZLINE stands by all products with its manufacturer parts warranty.

Product Features and Specifications

KBRR Product Features

• Convertible range hood - this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors
• Easy-to-use push button controls let's you easily control fan speed and lighting
• 4-Speed Fan Control (120/240/320/400 CFM) let's you choose the appropriate air flow for your cooking situation
• Ductwork easily connects to the top of the range hood for external venting
• LED lighting illuminates the cooktop beneath the hood

KBRR Product Specifications

• Brand: ZLINE Kitchen and Bath
• Dimensions:
• KBRR-30: 30" W x 19.7" D x 13.25" H
• KBRR-36: 36" W x 17.7" D x 13.25" H
• KBRR-48: 48" W x 19.7" D x 13.25" H
• Chimney: 12.5" W x 9.25" D x 23.5" H
• Venting Size: 6" Outlet (Transition piece to round ducting included)
• Airflow (Q/L/M/H): 120/240/320/400
• Lighting: 2 Directional LED Lights (3-Watt)
• Voltage: 110V/60HZ
• Motor: High Performance 400 CFM/4-Speed Motor
• Mount Type: Wall Mounted
• Speeds: 4 Speeds
• Material: Solid Wood Exterior with Stainless Steel Insert, Walnut-Toned Distressed Finish
• Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
• Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
• Warranty: 3-Year Parts Warranty
• Model No. KBRR-30, KBRR-36, KBRR-48
• Chimney Extension: Model No. KBRR-E
• UPC:
• KBRR-30: 817299021131
• KBRR-36: 817299021148
• KBRR-48: 817299021162
• Certifications: ETL Listed

KBRR-RD (Double Motor) Product Features

• Maintain a powerful range hood without the noise - our remote motor is installed in an attic or crawl space rather than the kitchen to reduce noise
• Ductwork easily connects to the top of the range hood for external venting
• LED lighting illuminates the cooktop beneath the hood
• Designed to fit standard (circular) ductwork for simple installation

KBRR-RD (Double Motor) Product Specifications

• Brand: ZLINE Kitchen and Bath
• Dimensions:
• KBRR-RD-30: 30" W x 19.7" D x 13.25" H
• KBRR-RD-36: 36" W x 17.7" D x 13.25" H
• KBRR-RD-48: 48" W x 19.7" D x 13.25" H
• Chimney: 12.5" W x 9.25" D x 23.5" H
• Venting Size: 8" Outlet (Transition piece to round ducting included)
• Airflow (Q/L/M/H): 280/420/560/700
• Lighting: 3 Directional LED Lights (3-Watt)
• Voltage: 110V/60HZ
• Motor: High Performance 700 CFM/4-Speed Motor
• Mount Type: Wall Mounted
• Speeds: 4 Speeds
• Material: Solid Wood Exterior with Stainless Steel Insert, Walnut-Toned Distressed Finish
• Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
• Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
• Warranty: 3-Year Parts Warranty
• Model No. KBRR-RD-30, KBRR-RD-36, KBRR-RD-48
• Chimney Extension: Model No. KBRR-E
• UPC:
• KBRR-RD-30: 812316038208
• KBRR-RD-36: 812316038239
• KBRR-RD-48: 812316038291
• Certifications: ETL Listed

KBRR-RS (Single Motor) Product Features

• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• LED lighting illuminates the cooktop beneath the hood
• High performance 4-speed motor
• Designed to fit standard (circular) ductwork for simple installation

KBRR-RS (Single Motor) Product Specifications

• Brand: ZLINE Kitchen and Bath

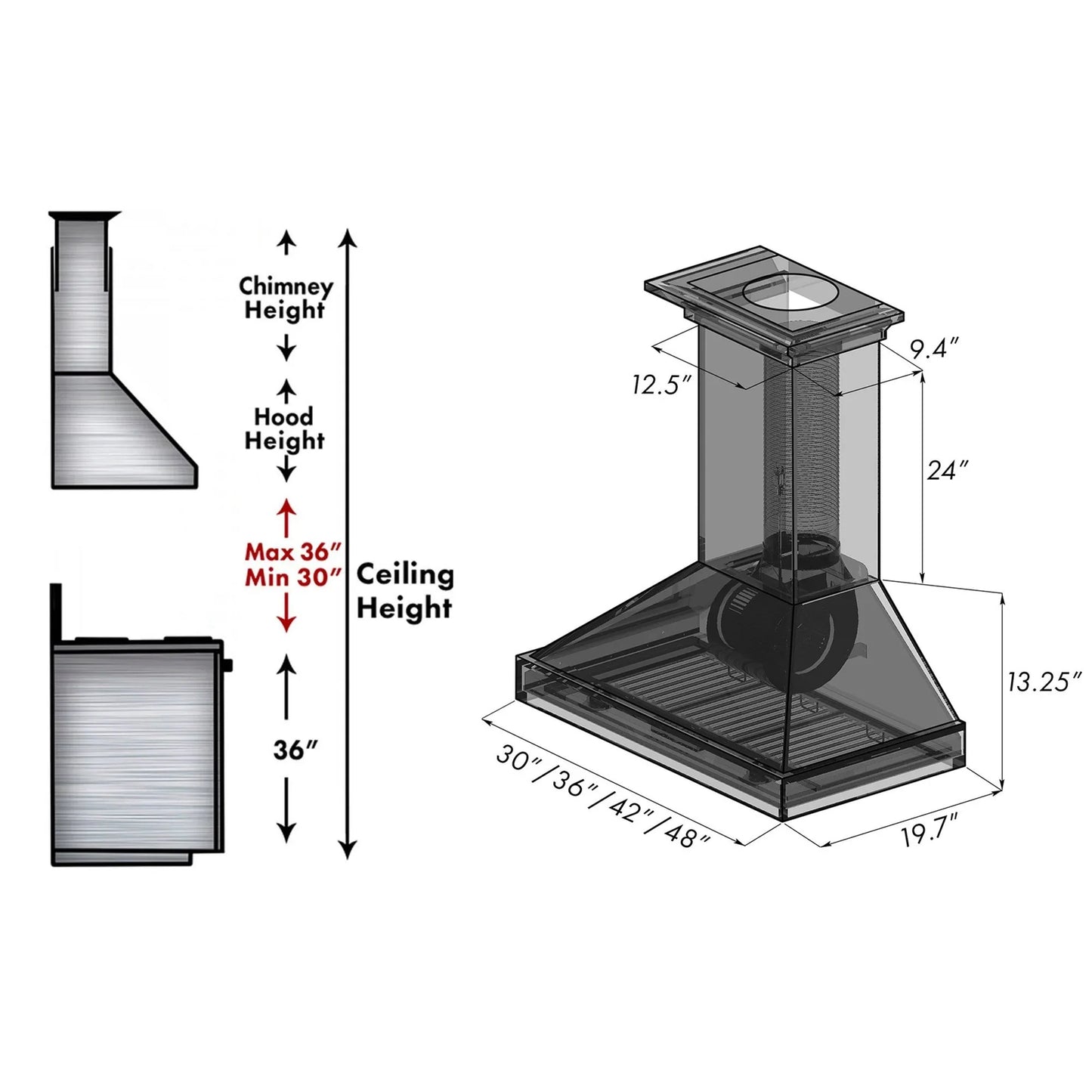

• Dimensions:
• KBRR-RS-30-400: 30 in. W x 18 in. D x 13.25 in. H
• KBRR-RS-36-400: 36 in. W x 20 in. D x 13.25 in. H
• KBRR-RS-48-400: 48 in. W x 20 in. D x 13.25 in. H
• Chimney: 12.5" W x 9.25" D x 23.5" H
• Venting Size: 8" Outlet (Transition piece to round ducting included)
• Airflow (Q/L/M/H): 120/240/320/400
• Lighting: 3 Directional LED Lights (3-Watt)
• Voltage: 110V/60HZ
• Motor: High Performance 400 CFM/4-Speed Motor
• Mount Type: Wall Mounted
• Speeds: 4 Speeds
• Material: Solid Wood Exterior with Stainless Steel Insert, Walnut-Toned Distressed Finish
• Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
• Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
• Warranty: 3-Year Parts Warranty
• Model No. KBRR-RS-30-400, KBRR-RS-36-400, KBRR-RS-48-400
• Chimney Extension: Model No. KBRR-E
• UPC:
• KBRR-RS-30-400: 812316038192
• KBRR-RS-36-400: 812316038222
• KBRR-RS-48-400: 812316038284
• Certifications: ETL Listed
