ZLINE 4 Piece Kitchen Package | Dual Fuel Range | Range Hood | Microwave Drawer | Dishwasher

ZLINE

4KP-RABRH48-MWDWV

Regular price
Price: $10,849.80
Regular price
MSRP: $14,647.23
Sale price
Price: $10,849.80
You save: $3,797.43 (26%)

Notify me when this product is available:

View Cart
Why Buy From Trusted Home Goods

Price Match Guarantee

We work very hard to ensure that we offer the absolute best prices online. If you find another online store that offers a lower price than us we will match the price.

ZLINE Authorized Retail Partner

We are a proud partner and Authorized Retailer for ZLINE Kitchen and Bath

Free Shipping and No Sales Tax On All Purchases

  • FREE ground shipping included on ALL purchases to the contiguous 48 states of the USA
  • This item ships LTL Freight
  • No Additional Sales Tax (unless shipping to KY)

Questions? Call or Text 502-833-6237

Availability: Out Of Stock

Estimated Delivery: Between Dec 31 and Jan 03.

ZLINE 4 Piece Kitchen Package | Dual Fuel Range | Range Hood | Microwave Drawer | Dishwasher

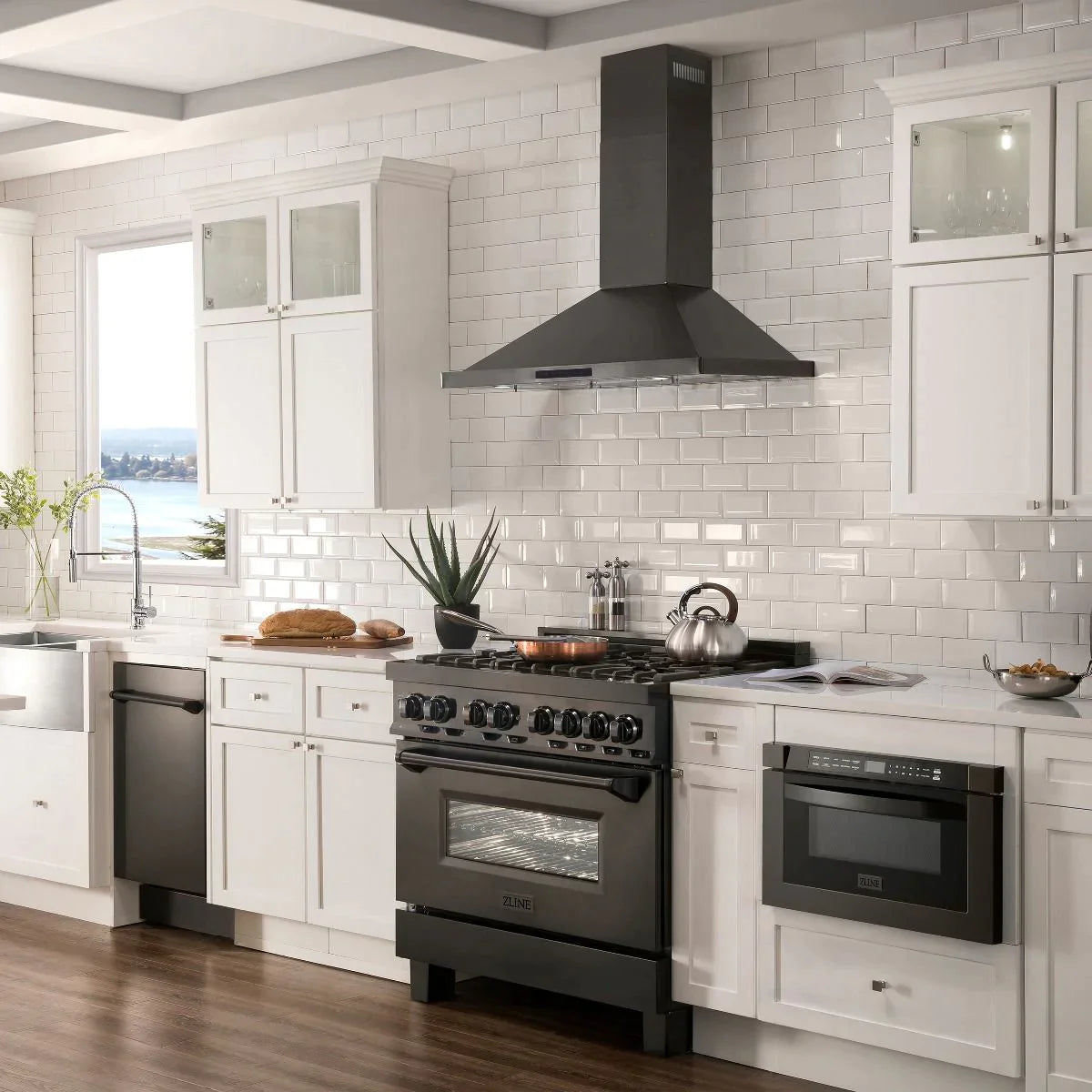

Experience Attainable Luxury® with the 4-Piece Appliance Package. Completely elevate your kitchen with the ultimate ZLINE kitchen appliance package - featuring the ZLINE Dual Fuel Range, Convertible Vent Wall Mount Range Hood, Microwave Drawer and Top Control Tall Tub Dishwasher. Save more when you purchase as a package and leave more in the budget for your dream home.



Black Stainless Steel Dual Fuel Range Description

ZLINE’s professional black stainless steel is truly unique in the industry. Each piece is hand cut and crafted utilizing premium grade stainless steel which accomplishes its sophisticated “piano black” finish through a technique called PVD (Physical Vapor Deposition) Coating. Also known as sputtering, this technique utilizes a vaporization process to create an atom-bonded, strong ceramic layer in order to achieve its stunning black stainless shine and built-to-last quality. The PVD ceramic layer is composed of abrasion-resistant material, ensuring that its pristine finish will be enjoyed for years to come. The industrial design of the (RAB) is executed through precise lines and detailing done with a precision laser. Each model includes Italian burners delivering over 65,000 BTU’s and also includes a durable, solid-piece Cast Iron Grates finalizing its industrial look. The ZLINE Dual Fuel Range is packaged in multiple boxes and will ship out together next business day when in stock.

Convertible Vent Range Hood Description

The ZLINE BSKBN is a professional wall mount stainless steel range hood with a modern design and built-to-last quality, making it a great addition to any kitchen. This hood's high-performance, 400 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking.  With its classic 430 grade black stainless steel, this range hood contains rust, temperature, and corrosion-resistant properties to ensure a durable vent hood that will last for years to come. Enjoy modern features, including built-in LED lighting for an illuminated culinary experience and dishwasher-safe stainless steel baffle filters for easy clean-up. This wall mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. Enjoy easy installation and an easy recirculating conversion process. Experience Attainable Luxury® in the heart of your home, with a ZLINE range hood. ZLINE Kitchen and Bath stands by all products with its manufacturer parts warranty. The BSKBN ships next business day when in stock.

Microwave Drawer Description

Luxury is made attainable with the ZLINE Professional Stainless Steel Microwave Drawer. Seamlessly integrate this cooking essential to perfectly fit into your kitchen design with installation flexibility. The under-counter built-in installation provides a clutter-free countertop and a sleek, modern look. Enjoy an easily-accessible LCD button display and an effortless open and close operation. This top loading microwave drawer provides unmatched convenience and space-saving qualities to enhance your kitchen experience. Make every meal a masterpiece with superb professional cooking with 11 power levels, multiple defrost settings, and 1,000 watt cooking power. The MWD-1 Microwave Drawer ships next business day when in stock.

Top Control Dishwasher Description

Experience Attainable Luxury® with premium eco-friendly washing features and a modern integrated top control design in the ZLINE Dishwasher with a Modern Style Handle. Designed to optimize performance every use, this dishwasher features industry-leading ZLINE Multiple Filter System technology. This technology is composed of three mesh filters that efficiently clean every dish while being environmentally friendly. ENERGY STAR compliant, this unmatched dishwasher features eco-friendly dishwasher settings, saving on both water and energy by over 30% with each load. Accommodating to every household size, this 24-inch dishwasher comfortably fits 20 place settings within its full-depth dish racks. Enjoy an incredibly quiet noise level during each wash cycle, providing complete peace of mind and sparkling clean dishes. The ZLINE Dishwashers with Modern Style Handle is packaged in multiple boxes and will ship out together the next business day when in stock.

Tall Tub Dishwasher Description

Experience Attainable Luxury® with the ZLINE 24" Tall Tub Top Control Dishwasher. Featuring 8 different wash cycles to accommodate every need, this dishwasher delivers a powerful performance with sparkling clean and dry dishes every time. Customize the dishwasher to your needs with two adjustable racks and a third utensil rack for added flexibility. This ENERGYSTAR Certified dishwasher is designed to optimize performance with every use, using multiple filter technology that ensures clean dishes while being environmentally friendly. This dishwasher is packaged in multiple boxes and will ship out together next business day when in stock.

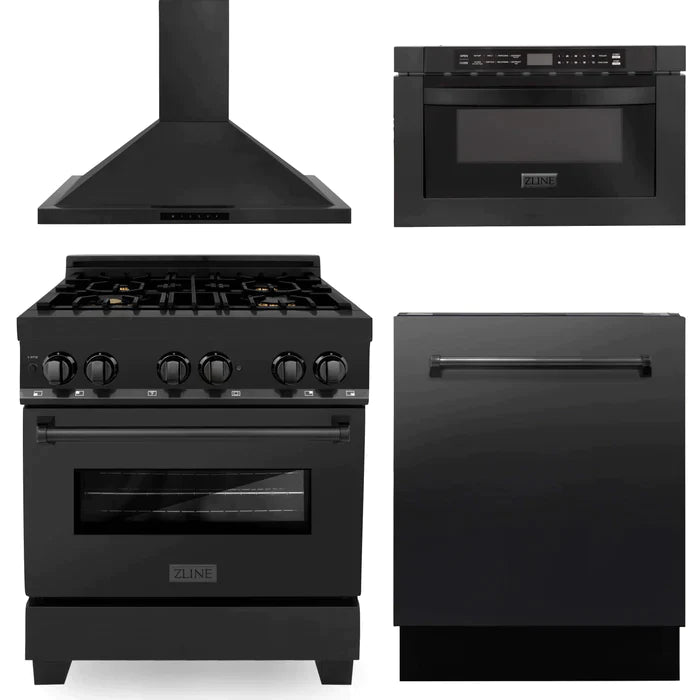

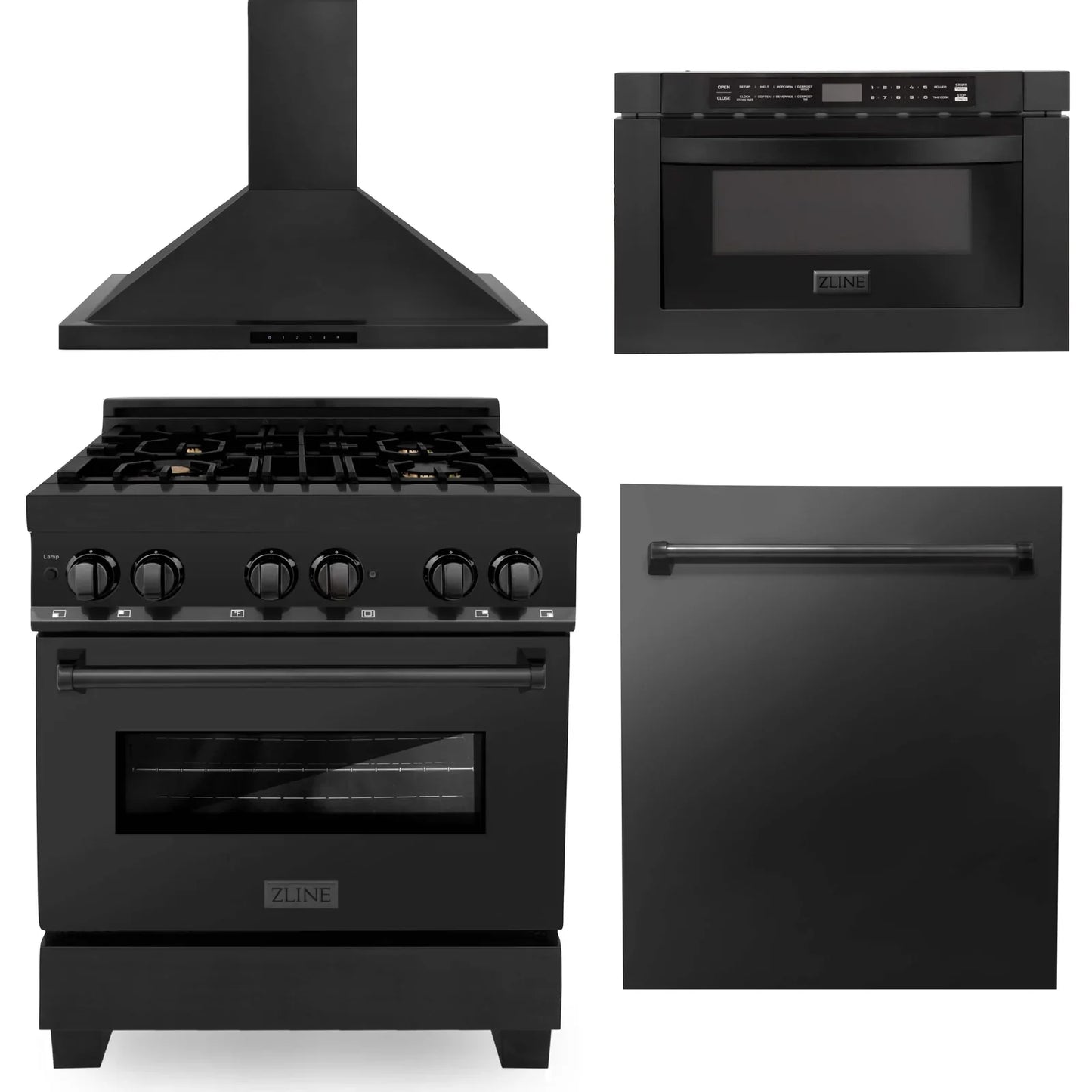

Included within Package

30'' / Tall Tub

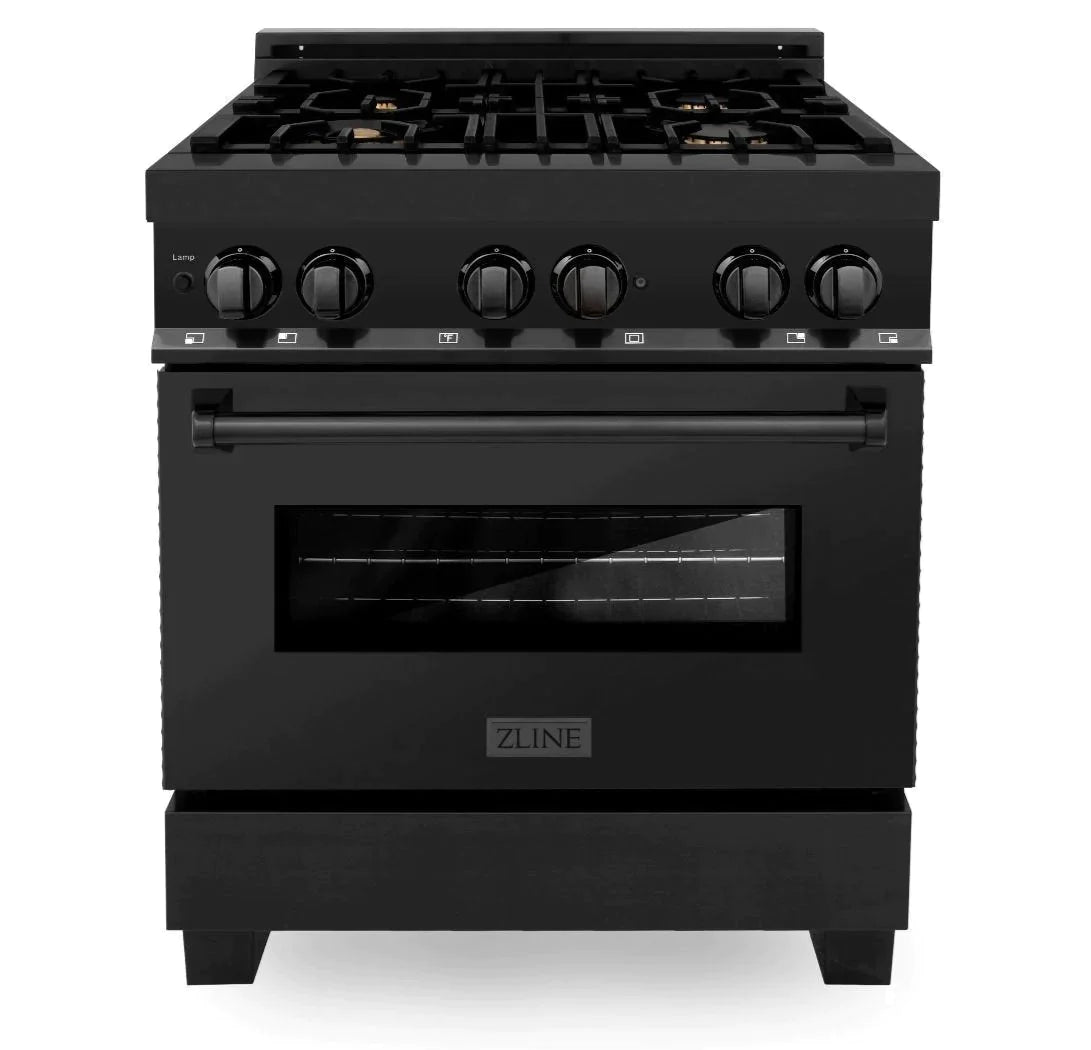

  • ZLINE 30" 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Black Stainless Steel (RAB-30)
  • LINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Black Stainless Steel (MWD-1-BS)
  • ZLINE 24" Top Control Tall Tub Dishwasher in Black Stainless Steel with Stainless Steel Tub and 3rd Rack (DWV-BS-24)
  • ZLINE 30" Convertible Vent Wall Mount Range Hood in Black Stainless Steel (BSKBN-30)

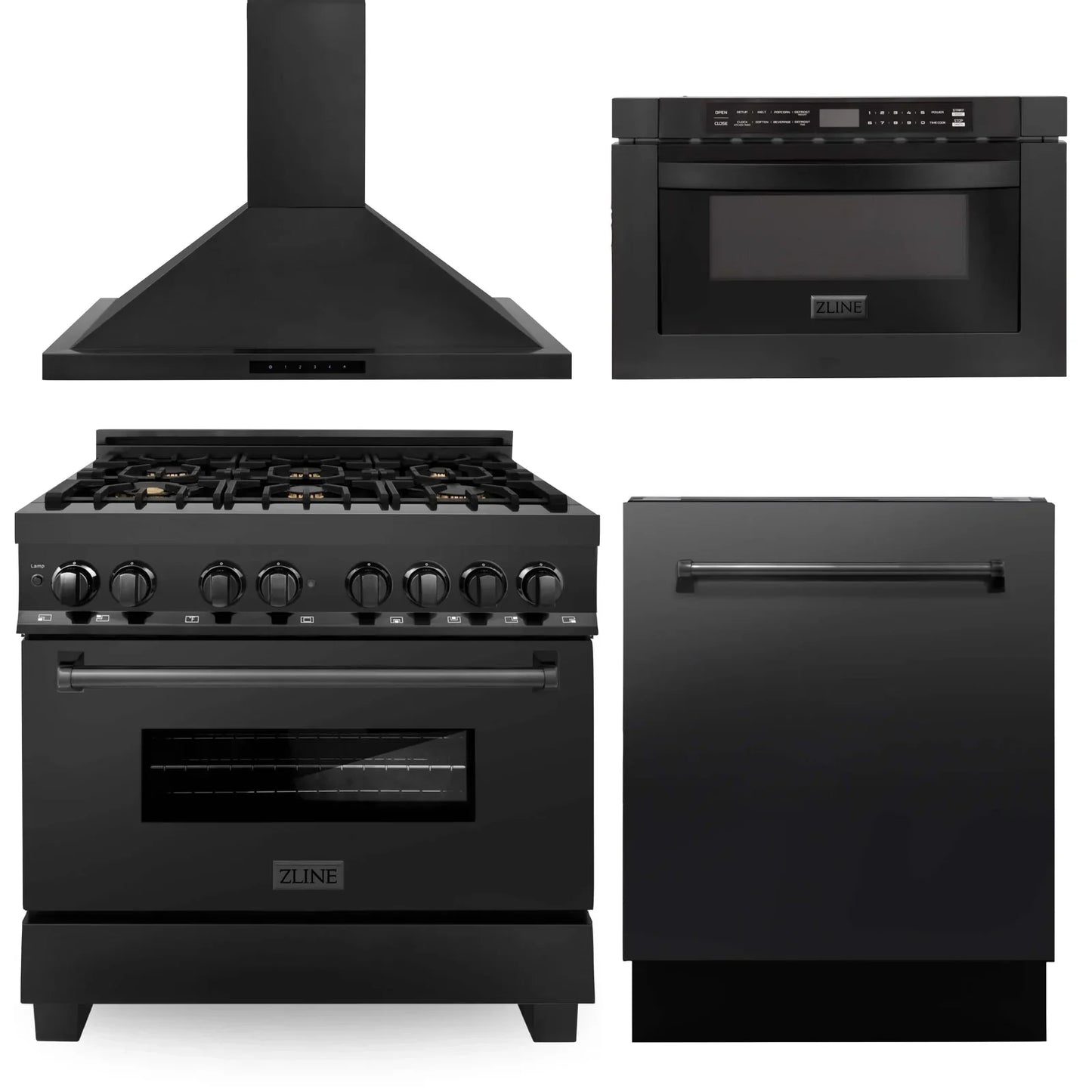

36'' / Tall Tub

  • ZLINE 36" Black Stainless 4.6 cu.ft. 6 Gas Burner/Electric Oven Range (RAB-36)
  • ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Black Stainless Steel (MWD-1-BS)
  • ZLINE 24" Top Control Tall Tub Dishwasher in Black Stainless Steel with Stainless Steel Tub and 3rd Rack (DWV-BS-24)
  • ZLINE 36” Convertible Vent Wall Mount Range Hood in Black Stainless Steel (BSKBN-36)

48'' / Tall Tub

  • ZLINE 48" Black Stainless 6.0 cu.ft. 7 Gas Burner/Electric Oven Range (RAB-BR-48)
  • ZLINE Convertible Vent Wall Mount Range Hood in Black Stainless Steel (BSKBN)
  • ZLINE 24" Top Control Tall Tub Dishwasher in Black Stainless Steel with Stainless Steel Tub and 3rd Rack (DWV-BS-24)
  • ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Stainless Steel (MWD-1)



Product Features and Specs

Dual Fuel Range Features





Black Stainless Steel

  • Professional Dual Fuel cooking blends the high performance of a gas cooktop and electric convection oven
  • The premium-grade black stainless steel is created by an atom-bonded technique called PVD ensuring built to last quality
  • 4 cu. ft / 4.6 cu. ft / 6.0 cu.ft. oven capacity for maximal space and convenience with everyday cooking
  • SmoothGlide ball-bearing racks make it easier to work with larger dishes and stay-put hinges are designed to support the full weight of the oven door
  • Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional
  • Dual oven lights, controlled by a switch on the front control panel, for an illuminated oven space
  • An oven with three layers of glass and aluminum mesh seal for premium oven insulation
  • Assembled with the highest quality materials, this range features 4 individual burners, a hand-finished stainless steel one-piece cooktop, and electronic spark ignition for all burners

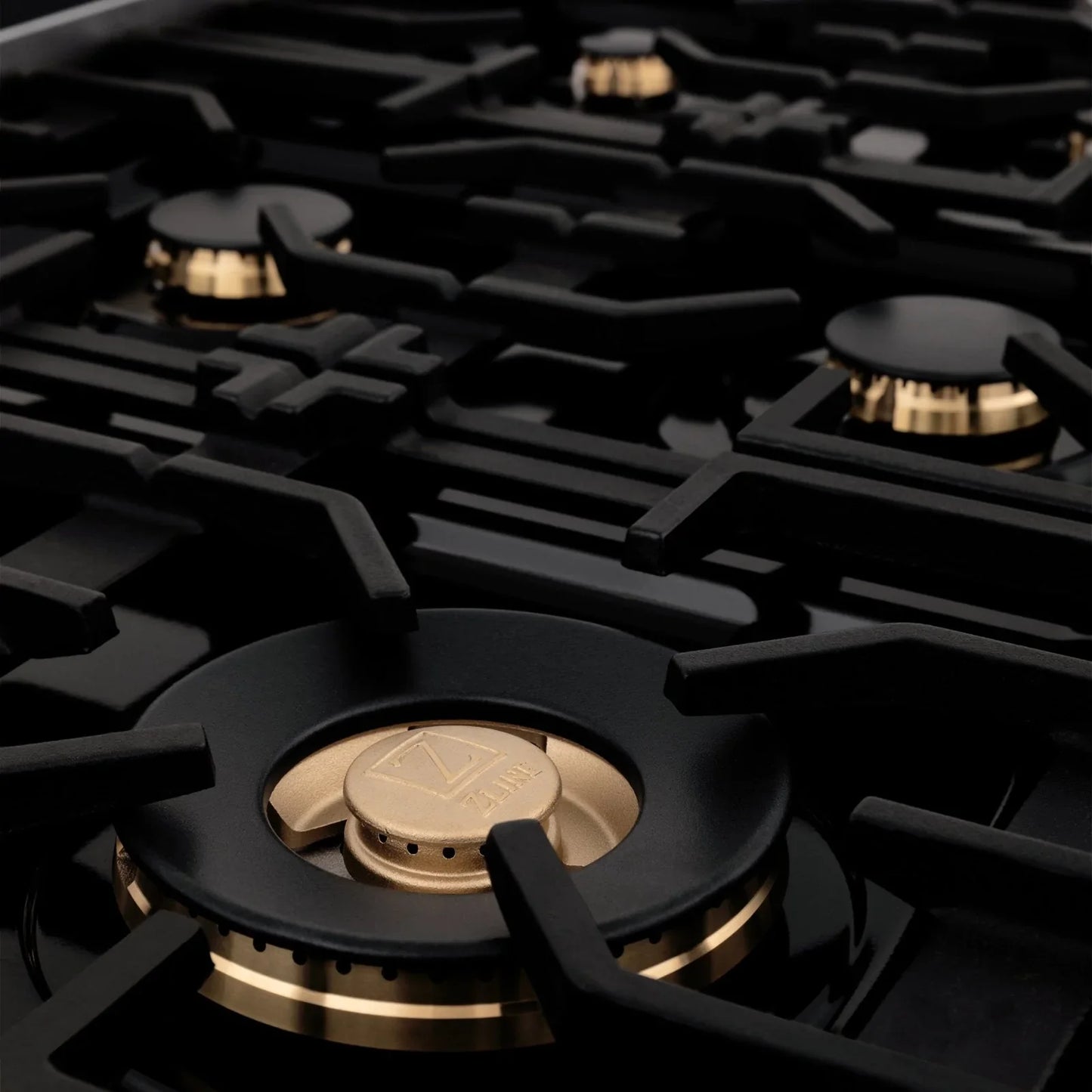

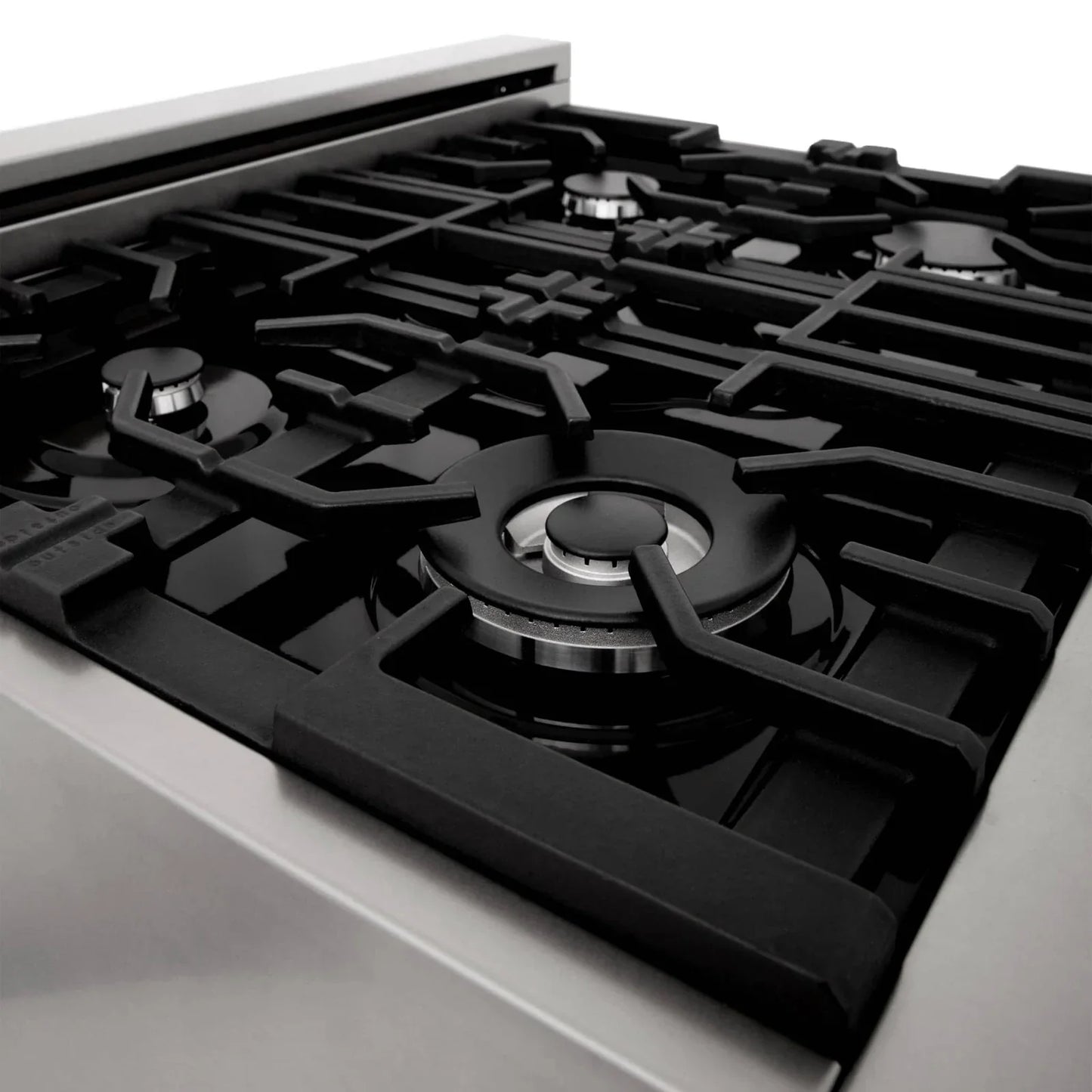

  • Italian made sealed burners - Hand cast brass burners range from 4,200 - 18,000 BTUs to optimize every meal with a powerful, even heat integrated within the cooktop
  • Twist legs to adjust total range height anywhere from 36 inches to 38.5 inches
  • An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
  • 1 year parts and service warranty

Dual Fuel Range Specs

Black Stainless Steel 48''
  • Brand: ZLINE Kitchen and Bath
  • Dimensions: 48" W x 27.38" D (29" with handle) x 36"H
  • Oven Dimensions: 26.5"/12.5"W x 18.5" D x 14"H
  • Lighting: Dual Lighting, controlled by light switch on front control panel
  • Voltage: Requires a minimum of 220V-240V/60HZ/50A
  • Mount Type Free Standing
  • Control Type: Durable Front Control
  • Material: Stainless Steel frame with Porcelain Top- Italian made hinges and burners
  • Cooktop: (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners
  • Oven:
    • Convection Oven
    • Manual Clean- Convection Electric- 4.6 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal
  • BTU Rating: Burners:
    • Dual Wok (x2) - 18,000 BTU
    • Griddle Burner - 13,000 BTU
    • Rapid Burner - 13,000 BTU
    • Semi-Rapid Burner (x2)- 8,500 BTU
    • Auxiliary Burner - 4,200 BTU
  • Fuel Type: Convection Oven- Gas Cooktop
  • Warranty: 1 Year Warranty
  • Certifications: ETL Certified
  • Product Weight: 270lbs
  • Click Here to View Manual

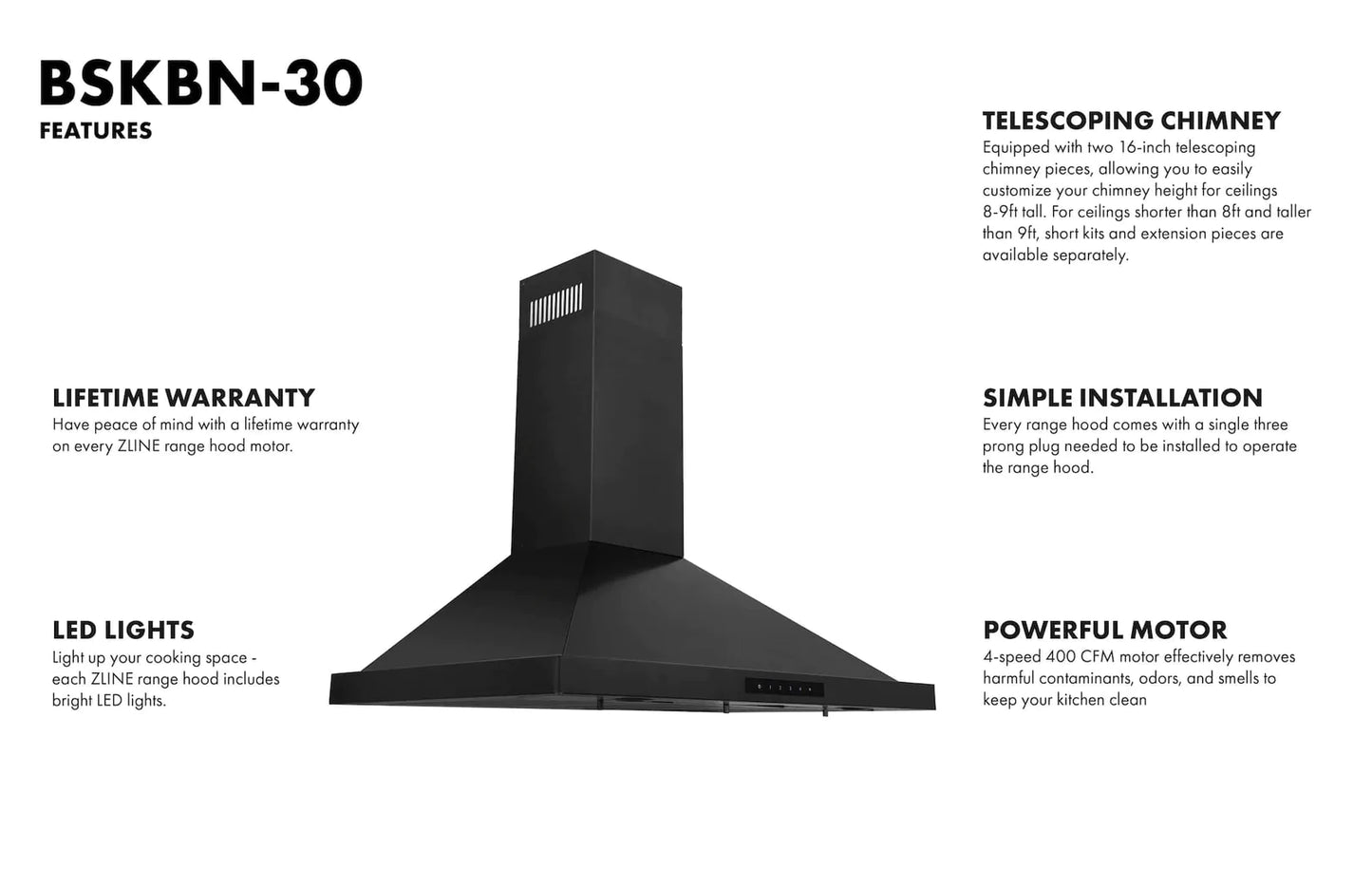

    Convertible Vent Range Hood Features



     Black Convertible Vent Range Hood

    • Dishwasher-safe stainless steel baffle filters
    • Built-in LED lighting
    • High performance 4-speed motor with speeds up to 400 CFM
    • Includes chimney

    All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

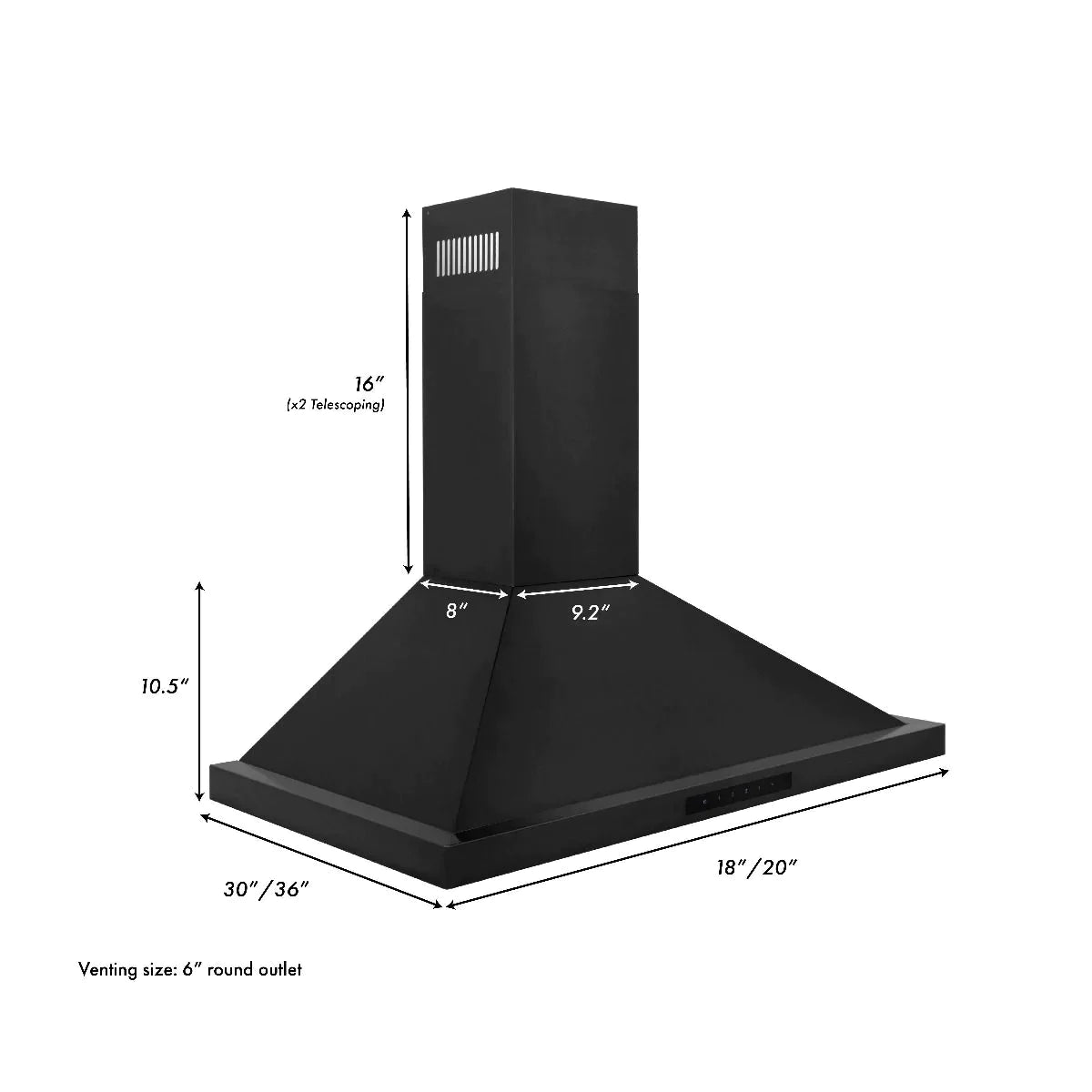

    Convertible Vent Range Hood Specs

    • Brand: ZLINE Kitchen and Bath
    • Dimensions:
      • BSKEN-24: 24" W x 17.75" D x 10.5" H
      • BSKEN-30: 30" W x 17.7" D x 10.5" H
      • BSKEN-36: 36" W x 19.7" D x 10.5" H
      • BSKEN-42: 42" W x 19.7" D x 10.5" H
      • BSKEN-48: 48" W x 19.7" D x 10.5" H
    • Chimney: 9.2" W x 8" D x 16" H (x2) (Telescoping)
      • Chimney Short Kit and Extension(s) Available:
        • Short Kit (2-12") ~8 ft. Ceilings
        • 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
        • 2 PC Extension (2-36") ~10-12 ft. Ceilings
    • Venting Size:
      • 6" Outlet (Transition piece with backdraft damper to round ducting included)
      • Charcoal Filters (not included) available for ductless/recirculating option.
    • Lighting: 2 Directional LED Lights (3-Watt)
    • Airflow (Q/L/M/H): 120/240/320/400
    • Motor: High Performance 400 CFM/4-Speed Motor
    • Noise Level: 20/29/34/41 (Decibels)
    • Voltage: 110V/60HZ
    • Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
    • Material: Black Stainless Steel
    • Mount Type: Wall Mounted
    • Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
    • Warranty: 3 Year Parts Warranty
    • Features: Model No. BSKBN
    • Certifications: ETL Listed

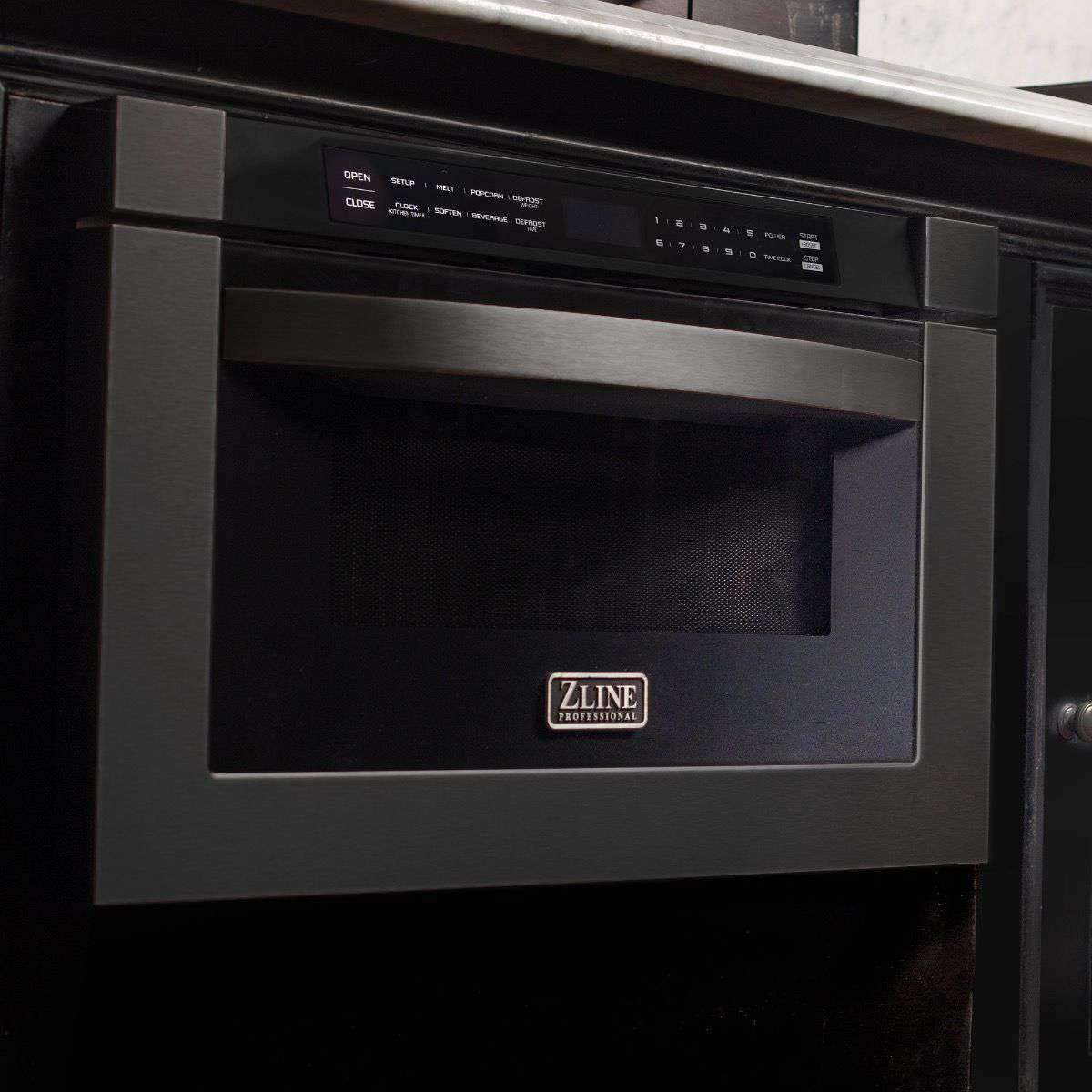

    Microwave Drawer Features



    Black Stainless Steel Microwave Drawer

    • Open the drawer with a touch of a button - easy to use open and close buttons for added convenience
    • Space-saving microwave designed to be seamlessly installed built-in under a counter or in a wall
    • Choose from 11 power levels for the perfect power option for your cooking needs
    • Features 1,000 watt cooking power for fast cooking
    • Boil water as quickly as 1 minute and 50 seconds with standard microwave settings
    • Easy to use glass touch controls and LED display
    • Easily melt or soften butter, chocolate, ice cream, cheese, or marshmallows with pre-programmed settings
    • Enjoy multiple microwave modes such as defrost, popcorn, and beverage heating
    • With 1.2 cu ft capacity, the interior accommodates coffee mugs up to 7 inches tall and dishes up to 16 x 16 inches
    • 2 year parts warranty
    • Defrosting rack included
    • ETL Listed and ADA Compliant

    Microwave Drawer Specs

    • Brand: ZLINE Kitchen and Bath
    • Dimension: 24" W x 25" D x 14.6" H
    • Voltage: 120V/ 60HZ/15A
    • Motor: 1000W
    • Mount Type:  Drawer
    • Control Type: 11 Power Levels
    • Warranty: 2 Year Parts
    • UPC:
      • MWD-1
        • 817299028529
      • MWD-1-BS
        • 812316039694
    • Features: ADA Compliant
    • Product Weight: 70.5 LBS

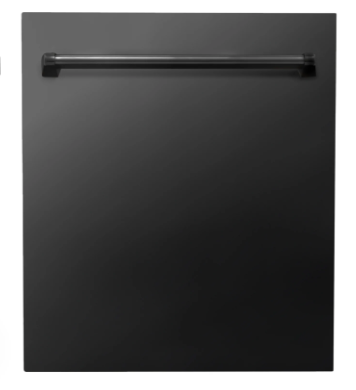

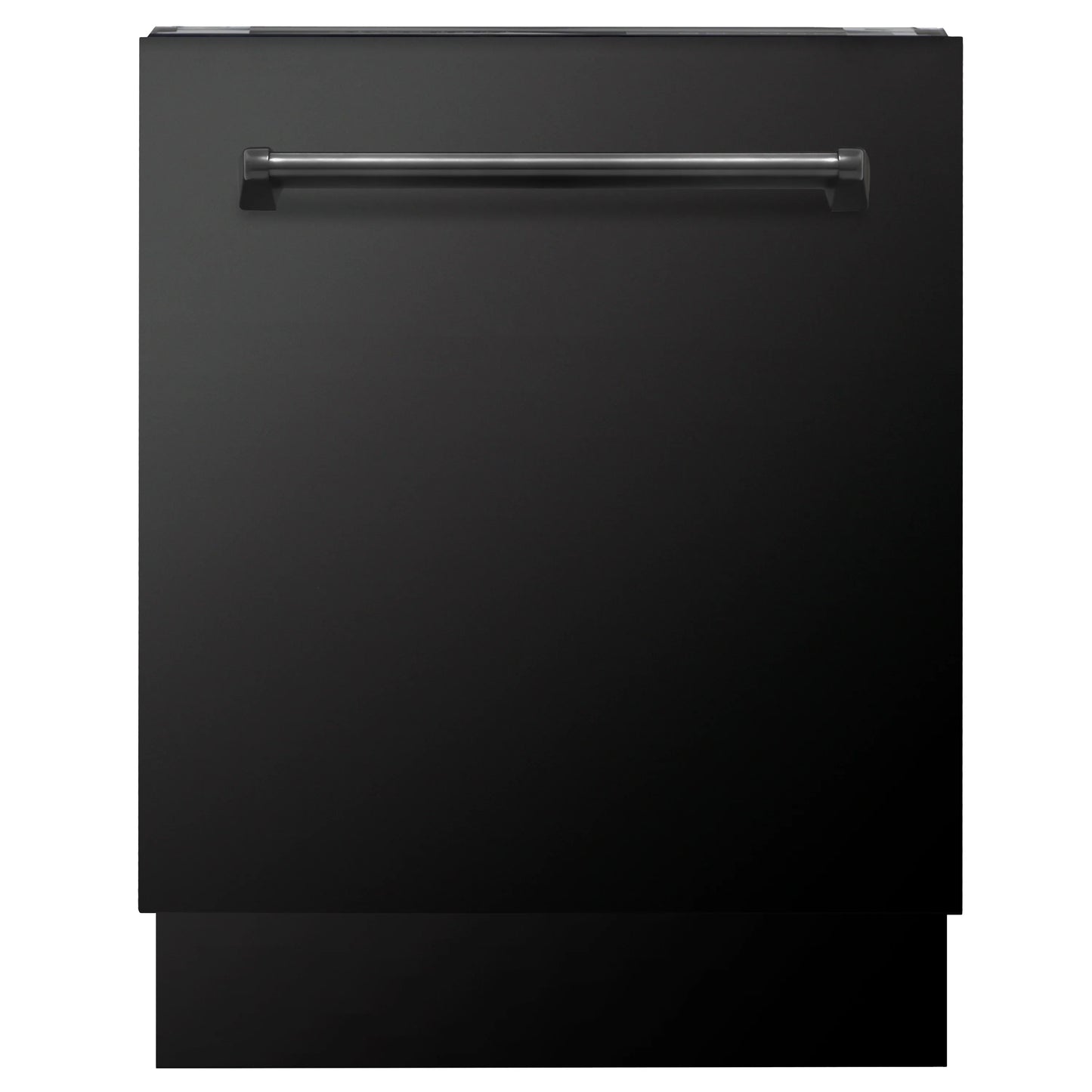

    Dishwasher Features

     Top Control Dishwasher

    Tall Tub Dishwasher

    Top Control Tall Tub

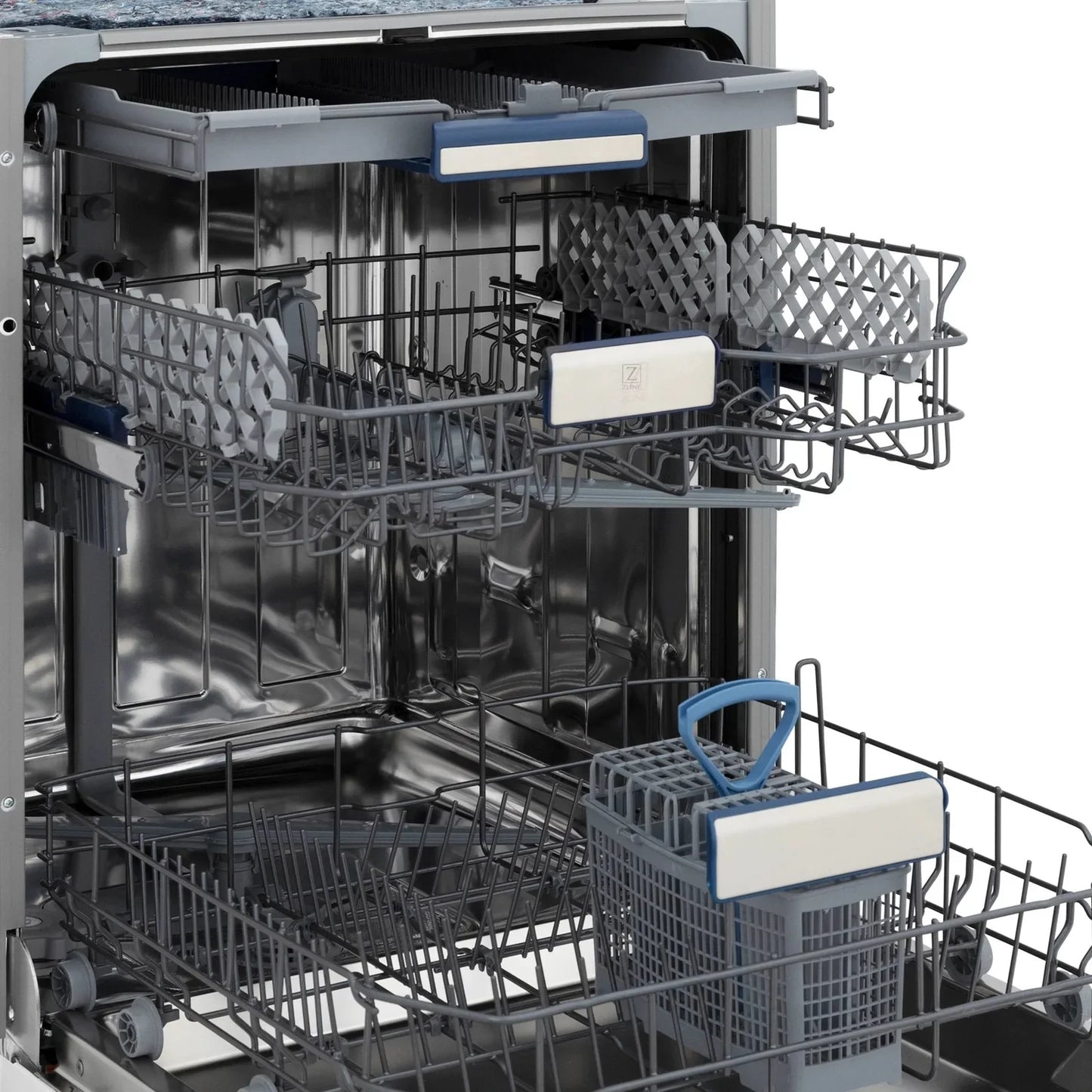

    • Comfortably fit 20 place settings including: large and small plates, salad bowls, serving bowls, cups, forks, knives, spoons and more.
    • Built-in European style dishwasher designed to be low-profile
    • Custom ZLINE Multiple Filter System technology hosts three mesh filters to separate soiled water and clean water in different chambers, optimizing performance and using less water and energy.
    • ENERGY STAR compliant
    • California residents: See Prop 65 Warning


    With echo-resistant 430 grade stainless steel and an intuitive design, enjoy a peaceful kitchen at only 40 decibels of sound; quieter than the majority of our competitors.


    • 8 different wash cycles to give the best cleaning effect specific to your needs
    • Auto cycle automatically detects the right water temperature and pressure needed for your load
    • Intensive and Intensive Plus cycles take care of heavily soiled items by adding extra time to the wash cycle
    • Simple Installation - This dishwasher comes with a single three prong plug for easy installation
    • With just 51 dBA, you can enjoy a peaceful kitchen with spotless dishes
    • Accommodates 15 place settings with a 3rd rack for utensils



    Dishwasher Specs

    Top Control Tall Tub
    • Brand: ZLINE Kitchen and Bath
    • Product Dimension: 24 in. W x 23 in. D x 32.5 in. H
    • Cutout Dimension:
      • Cut-Out Depth (in.): 23
      • Cut-Out Height (in.): 32.5
      • Cut-Out Length (in.): 23.6
    • Product Weight: 87 lbs
    • Motor Wattage: 100
    • Control Location: Top Control
    • Number of Cycles: 6
    • Handle Type: Bar Handle
    • Rack Material: Nylon
    • Number of Place Settings: 20
    • Energy Efficient Tier Rating: Tier 1
    • Panel Finish: Panel Ready
    • Noise Level: 40 Decibels
    • Voltage: 120V
    • Control Type: Touch
    • Material: Stainless Steel Tub
    • Warranty: 1 Year Parts
    • Certifications:
      • ENERGY STAR Certified
      • UL Listed & ETL Listed
    • Brand: ZLINE Kitchen and Bath
    • Product Dimension: 24 in. W x 22.5 in. D x 35.9 in. H
    • Cutout Dimension:
      • Cut-Out Depth (in.): 22.5
      • Cut-Out Height (in.): 35.9
      • Cut-Out Length (in.): 23.6
    • Motor Wattage: 110
    • Control Location: Top Control
    • Number of Cycles: 8
    • Rack Material: Nylon
    • Number of Place Settings: 15
    • Energy Efficient Tier Rating: Tier 1
    • Noise Level: 51 Decibels
    • Voltage: 120V
    • Control Type: Button
    • Material: Stainless Steel Tub
    • Warranty: 1 Year Parts
    • Certifications:
      • ENERGY STAR Certified
      • UL Listed & ETL Listed




    Product Manuals

    Dual Fuel Range Manual


    Convertible Vent Range Hood Manual



    Microwave Drawer Manual



    Dishwasher Manual
