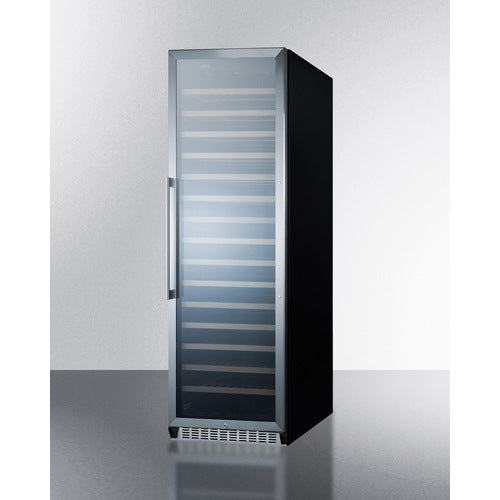

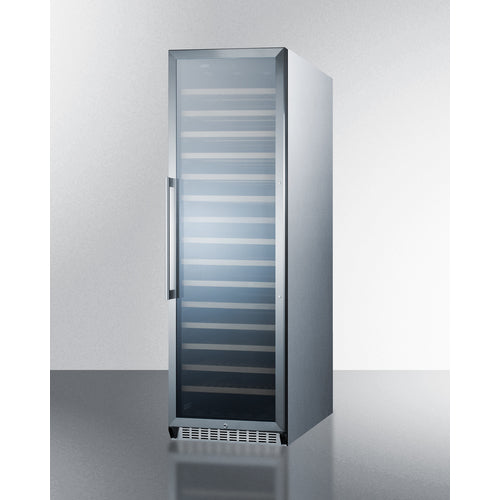

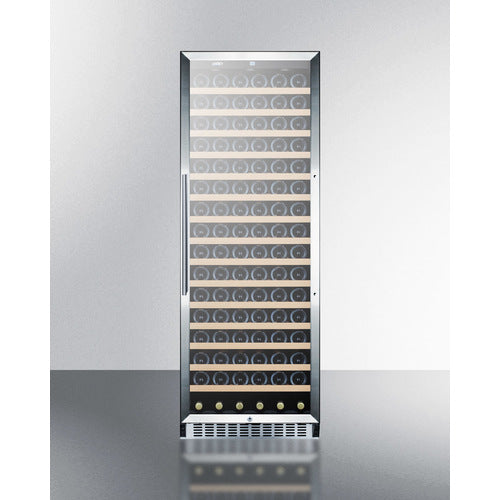

Summit 24" Wide 171 Bottle Single Zone Wine Cooler (Stainless Steel or Black Exterior)

SUMMIT SWC1926 is a full-sized wine cellar designed for optimum wine storage with user-friendly convenience.

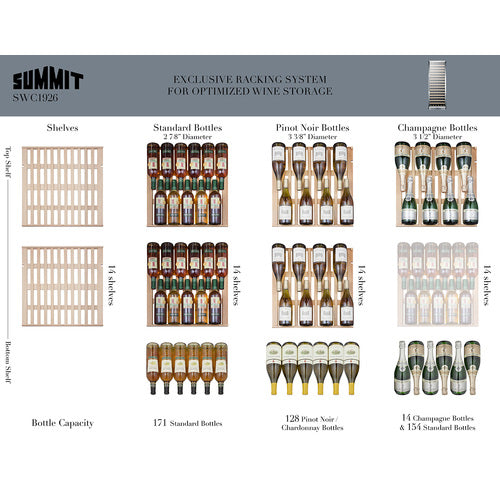

Sized at just under 24" wide and 27" deep, the SWC1926 can store up to 171 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 128 wider Burgundy style bottles (typically used for Chardonnay or Pinot Noir) or a combination of 14 champagne bottles and 154 Bordeaux bottles. A digital thermostat makes it easy to adjust the temperature between 41ºF and 72ºF for red or white wine storage, with an LED temperature display that can be shown in Celsius or Fahrenheit. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection.

The SWC1926 has a jet black cabinet and reversible stainless steel trimmed glass door that offers a full display of the interior. A sleek stainless steel handle completes the look, and a factory installed lock offers added security. This unit can be used freestanding or built-in with extra rear clearance. See the user manual for more information.

With its ideal size and handy features, the SWC1926 is an elegant yet affordable wine cellar for full storage needs.

The Essentials: Here's What You Need To Know

• Large capacity

  Interior can hold up to 171 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy style bottles, you can hold up to 128. For champagne, the interior can hold 14 bottles (plus an additional 154 of the standard Bordeaux style)

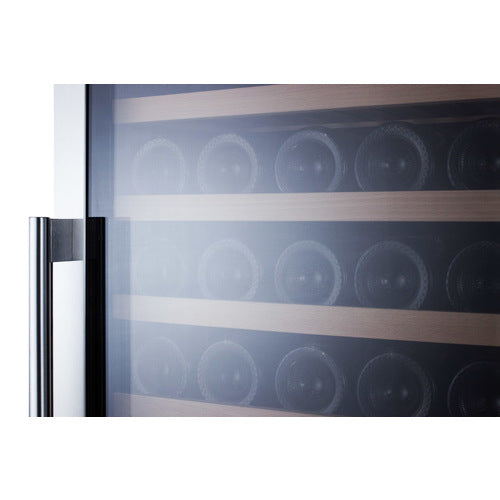

  Double pane tempered glass door

  Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent

  Commercial design

  Meets UL-471 commercial standards

  Digital thermostat

  Intuitive electronic controls make it easy to manage the internal temperature of your collection

  LED lighting

  Recessed lighting offers an elegant, efficient view of your collection

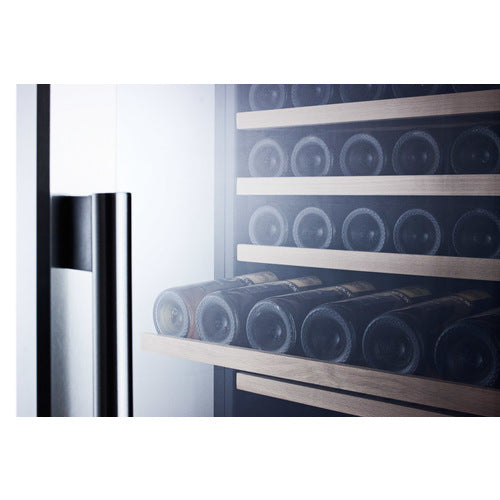

  Slide-out wooden shelves

  15 wooden wine shelves for classic storage

  Factory installed lock

  Keyed lock for trusted security

  Reversible door

  User-reversible door swing allows for more flexibility in placing the unit

  Fully finished black cabinet

  Allows the unit to be used freestanding

  Professional handle

  Stainless steel handle completes the professional look

  Automatic defrost

  Reduced user maintenance with auto defrost operation

  Modified built-in use

  Unit can be installed in built-in applications with at least 2" of clearance in the rear to ensure adequate ventilation

  High temperature alarm

  Audible alarm sounds if the storage temperature rises out of recommended range

  Open door alarm

  Alarm sounds if the door is left open for more than 60 seconds

  Temperature Memory Function

  Unit will retain its last settings when power is restored in the event of power loss

  Sabbath Mode

  Optional setting lets you disable the lighting and alarms for up to 48 hours

  Stainless steel kickplate

  Sleek look with added protection

  100% CFC free

  Environmentally safe operation with no ozone-damaging chemicals

  CARB Compliant

  Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SPECIFICATIONS

Overview
Height of Cabinet	69.75" (177 cm)
Width	23.63" (60 cm)
Depth	26.63" (68 cm)
Depth with Handle	27.75" (70 cm)
Depth with door at 90°	48.75" (124 cm)
Bottles	171 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	187.0 lbs. (85 kg)
Shipping Weight	194.0 lbs. (88 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101031965
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	15
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.91 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	60.5" (154 cm)
Interior Width 1	19.75" (50 cm)
Interior Depth 1	21.0" (53 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.75" (50 cm)
Compressor Step Depth	5.5" (14 cm)
Sabbath Mode	Yes



Additional Information

California residents:

 WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

 BROCHURE w/ DRAWINGS SWC1926.pdf

 TECHNICAL DRAWING (.dwg) SWC1926WINECELLARA-C2000.dwg

 USE & CARE SWC1535B_SWC1875B_manual.pdf

SUPPORT SWC1926_Shelving_Guide.pdf

MSDS INFORMATION R600a_K.pdf
