Summit 24" Wide, 163 Bottle Dual Zone Wine Cooler (Stainless Steel or Black Exterior Cabinet)

Summit

SWCP2163CSS

Regular price
Price: $3,139.00
Regular price
MSRP: $4,220.00
Sale price
Price: $3,139.00
You save: $1,081.00 (26%)
View Cart
Why Buy From Trusted Home Goods

Fast & Free Shipping On All Purchases

Trusted Home Goods provides FREE ground shipping on all purchases. to the contiguous 48 states of the USA.

30 Day Returns - No Questions Asked

We offer a 30-Day Satisfaction Guarantee Policy. We want you to be 100% satisfied with your purchase.

Call or Text 502-833-6237

Feel at ease knowing you will always speak to a human when dealing with us. Call or text us anytime at 502-833-6237

This item is in stock! Estimated Delivery: Between Feb 24 and Feb 27.

The SWCP2163 is a 24" wide dual zone wine cellar that meets commercial standards. The upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It features a front-breathing design for built-in installation, with a fully finished cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim.

Inside includes 13 full-extension black wire shelves positioned on ball bearing glides for smooth loading. Optimal storage capacity accommodates up to 163 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.

With its convenient size, advanced features, and luxury design, the SWCP2163 is perfect for restaurants, bars, wineries, and homes seeking full capacity wine storage with a modern presentation.




The Essentials: Here's What You Need To Know

  • Commercially approved

    ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings

    Built-in capable

    Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)

    Double pane tempered glass door

    Provides a full display of the interior, with two levels of glass for added protection

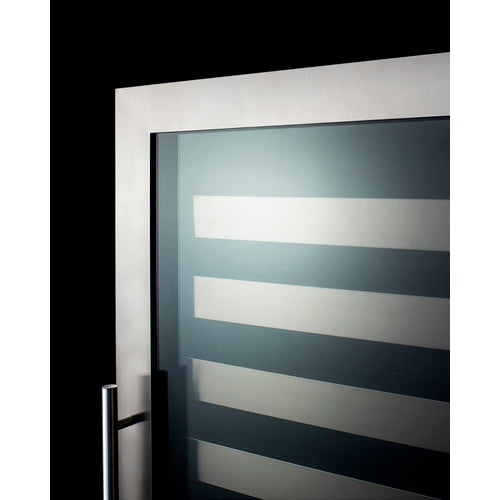

    Seamless stainless steel door frame

    Single-piece door trim offers a more deluxe look

    Two temperature zones

    Chill white wine in the upper zone while preserving your reds at a warmer temperature below

    Digital thermostat

    Located inside the unit, the electronic thermostat allows easy temperature adjustment

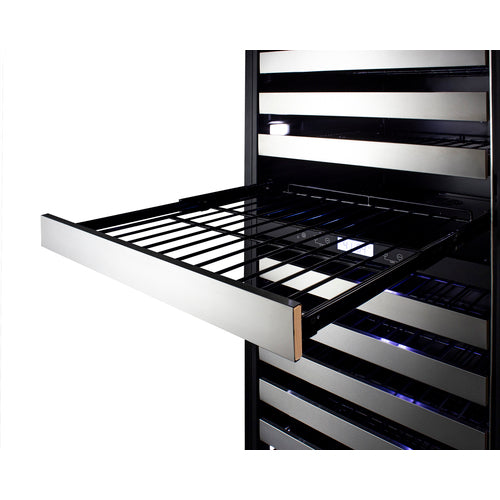

    Full-extension wire shelving

    13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

    Stainless steel trimmed shelving

    Fronts feature a stainless steel accent to elevate your presentation

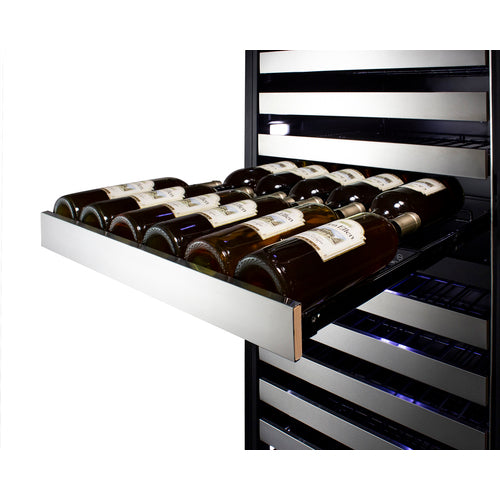

    Versatile storage

    Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)

    LED lighting

    Nine LED lights provide an attractive and energy-efficient illumination

    Factory-installed lock

    Keyed lock secures both zones

    Temperature range

    Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature

    Stainless steel kickplate

    Allows for front ventilation in an elegant design

    Charcoal filtration system

    Helps to purify air for an odor-free interior

    High/low temperature alarms

    Audibly sounds if the interior rises or falls out of range

    Open door alarm

    Alerts if unit door is ajar for more than 5 minutes

    Magnetic door gasket

    Ensures a tight seal for energy savings and improved performance

    Right angle plug

    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

    CARB compliant

    Uses environmentally friendly R600a refrigerant to comply with current regulations

    Fully finished cabinet

    Allows the unit to be used freestanding

    100% CFC free

    Environmentally friendly design with no ozone-damaging chemicals



SPECIFICATIONS

Overview
Height of Cabinet 69.5" (177 cm)
Width 23.63" (60 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at 90° 48.75" (124 cm)
Bottles 163 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 269.0 lbs. (122 kg)
Shipping Weight 300.0 lbs. (136 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101066356
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 13
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 31.0" (79 cm)
Interior Width 1 20.38" (52 cm)
Interior Depth 1 21.0" (53 cm)
Level Legs 2
Temperature Range 41-54°F (upper zone); 54-65°F (lower zone)
Interior Height 2 29.75" (76 cm)
Interior Width 2 20.38" (52 cm)
Interior Depth 2 21.0" (53 cm)



Additional Information

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
DownloadBROCHURE w/ DRAWINGS SWCP2163.pdf
Download TECHNICAL DRAWING (.dwg) SWCP2163_WINE_CELLAR__A-C_2018_.dwg
