Summit 24" Wide, 51 Bottle Dual Zone Fully Integrated Built In Wine Cooler

SUMMIT introduces fully integrated wine cellars for optimum storage and professional elegance.

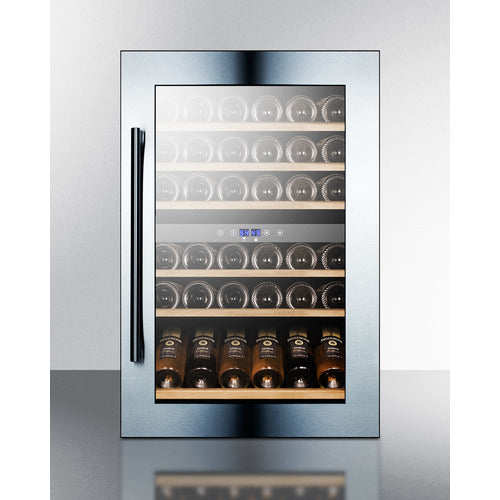

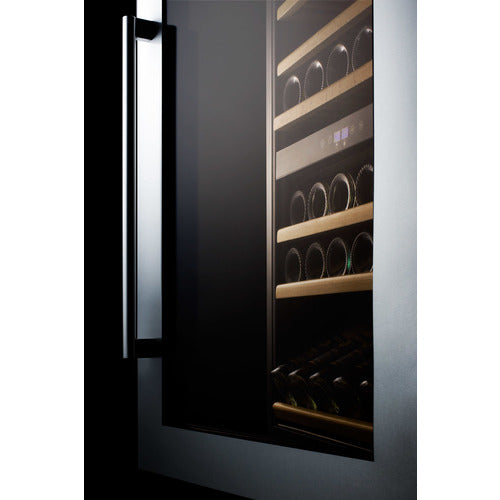

The VC60D is a dual zone wine cellar designed to store bottles under the ideal conditions. The door features a slightly tinted double pane tempered glass construction to protect your collection from UV light, with seamless stainless steel trim for a sleek, professional look. This unit includes a stylish stainless steel handle. The door swing is user reversible, offering more flexibility when positioning the unit.

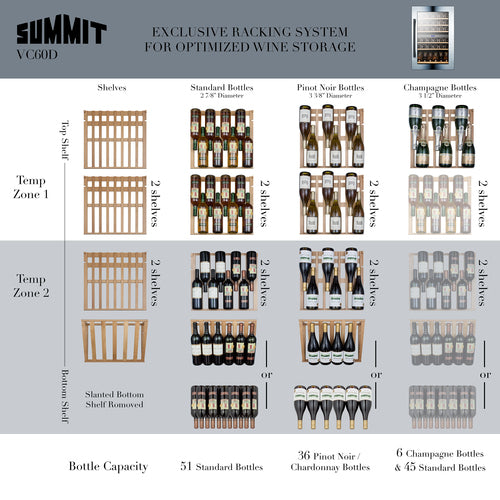

Inside, the VC60D features two distinct zones for storing reds and whites at the proper temperature. A digital thermostat offers easy temperature management, with an alarm that sounds when either interior temperature has drifted out of range. Five standard wooden shelves hold bottles in classic style, while the bottom shelf comes in a unique tilt design that lets you best display the labels for maximum effect. This unit can store up to 51 Bordeaux or 36 Burgundy style bottles, depending on exact bottle size and storage configuration. Recessed LED lighting provides an elegant view of the interior, with an optional setting of display or functional mode. Additional features include an open door alarm and Sabbath Mode setting for religious observance. The VC60D is auto defrost, with fan-forced cooling that ensures the interior temperature is evenly distributed and a condensation collection system that helps to maintain the correct level of humidity inside.

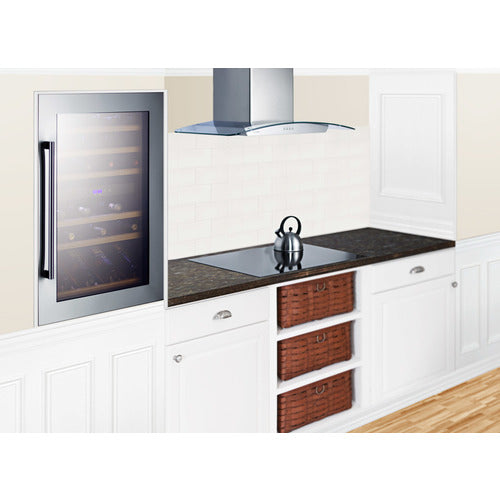

With a stunning look and versatile design, the VC60D adds a great touch to any room. This unit is designed for fully integrated installation (cutout dimensions: 34 3/8" to 34 5/8 H x 21 5/8" W x 21 5/8" D).

SPECIFICATIONS

Overview
Height of Cabinet	34.88" (89 cm)
Width	23.25" (59 cm)
Depth	22.38" (57 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	45.0" (114 cm)
Bottles	51 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Unfinished
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Shipping Weight	115.0 lbs. (52 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101031262
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior
Refrigerant Type	R134a
Refrigerant Amount	2.05 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	10.0" (25 cm)
Interior Width 1	18.25" (46 cm)
Interior Depth 1	16.75" (43 cm)
Compressor Step Height	7.5" (19 cm)
Compressor Step Width	18.25" (46 cm)
Compressor Step Depth	4.5" (11 cm)
Interior Height 2	19.0" (48 cm)
Interior Width 2	18.25" (46 cm)
Interior Depth 2	15.0" (38 cm)
Sabbath Mode	Yes







Additional Information

California residents:

 WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

 BROCHURE w/ DRAWINGS VC60D.pdf

TECHNICAL DRAWING (.dwg) VC60D_WINE_CELLAR__A-C_2010_.dwg

USE & CARE VC28S_VC60Dmanual.pdf

SUPPORT VC60D_Shelving_Guide.pdf
